Efficient Production Line for Paver and Blocks Concrete Block Machine

Product Description

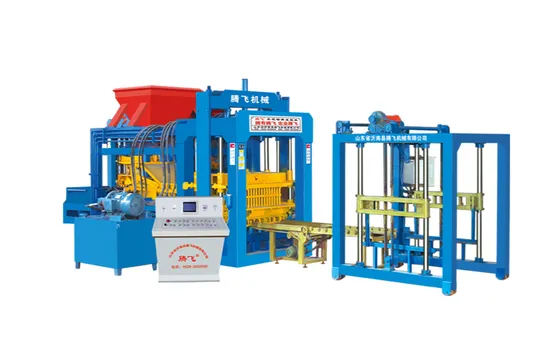

QT8-15 is an automatic block making machine, it can make different hollow and solid bricks by changing mold, it also can make
paver blocks by adding pigment feeder. The production line includes QT8-15 host machine with controller and hydraulic station,
stack machine, JS750 mixer and 8 meters belt conveyor, PLD1200 batching machine and pallet feeder machine
Production line showing

Product Parameters

QT8-15 block making machine
1. Dimension: 4400*2700*2800mm
2. Weight: 9.8T
3. Pallet size: 900*900*22mm
4. Shaping method: vibration and hydraulic
5. Shaping cycle: 15s
6. Power: 42.95KW

JS750 mixer
1. Dimension: 3.3*2.2*3.3m
2. Weight: 3t
3. Lift motor:7.5KW
4. Mix motor: 30KW
5. Water pump: 1.1KW

Stack machine
1. Dimension:1.7*1.8*2M
2. Weight: 1T
3. Power: 1.85kw
4. Stack layer: 3

PLD1200 batching machine
1. Dimension: 9.6*1.7*2.3m
2. Weight: 2tons
3. Power: 12KW
4. Capacity of scale hopper: 1.2m3

Block sample
Machine can make different bricks by changing mold, mold can be customized.


Feedback from customer

Company Profile
Shandong Yinan Tengfei Machinery Co.,Ltd is located in Linyi city, Shandong province of China. We are committed to the research and development, manufacture and sales of concrete block making machines since 2005.
With advanced technology, strong quality and perfect after sales service, we have gained a lot of customers from China and abroad. We have shipped our block machines to many countries like the Philippines, Vietnam, Pakistan, India, Bangladesh, Ghana, South Africa, Ethiopia, Senegal, Mozambique, Nigeria, Chile, Jamaica, Columbia, Argentina, USA, Mexico etc.
Tengfei Machinery will insist on creating a brighter future with Intelligence and innovation. We look forward to working with you in the very near future.

Any interest, please feel free to send inquiry and leave me your contact number, i wil contact you for further communication!

↓↓↓
