Fuel-Efficient and Eco-Friendly All-in-One Crawler Harvesting Machine

Product Description

Product Description

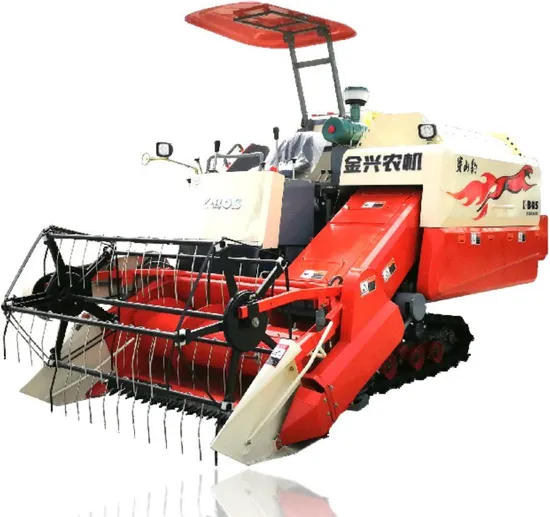

Introducing our state-of-the-art Combine Harvester, the perfect solution for all your harvesting needs. With its advanced features and cutting-edge technology, this self-propelled tracked harvester is designed to excel in hilly and mountainous regions, making it the ultimate harvesting expert.
Equipped with a powerful engine and a wide range of capabilities, our Combine Harvester is suitable for various crops including rice, wheat, oilseeds, corn, and soybeans. Its versatility and adaptability ensure efficient harvesting operations in diverse agricultural settings.
Our harvester is known for its exceptional performance and user-friendly operation. With low fuel consumption and energy-efficient mechanisms, it not only saves costs but also promotes environmental sustainability. Its flexible and convenient controls make it easy to maneuver, enhancing productivity and reducing labor efforts.
Invest in our Combine Harvester and experience the perfect blend of cutting-edge technology, efficiency, and reliability. With its exceptional capabilities, this agricultural machinery will revolutionize your harvesting operations, ensuring maximum productivity and profitability.
FIRST small Longitudinal axial flow combine in China
Specially designed for small field in mountain areas hills and island area
Tight constructure light weight wide rubber track
HIGH-STRENGTH engineering plastic sieve
FIVE-BAR pickup reel
Easy-operation and energy-saving
Multi-functional for corn rape seed soybean etc.
Product Parameters

Specification:
Product Model			4LZ-3.0Z Combine Harvester
Overall Dimension Length×Width×Heights ( mm ):			4300×1980×2675
Weight (kg)			2410
Productivity of Operating Hours(hm²/h):			0.05~0.48
Engine	Engine Model		4B2-60U32
	Rated Power ( kw/hp )		44.2KW/60HP,51KW/70HP
	Engine Type		Water-Cooled, 4-Cylinder, DI-Injection, Vertical Turbocharged Diesel.
	Rated Rotation Speed (r/min)		2400
Traveling System	Type of Gearbox:		HST X (3F, 3R) Hydraulic type + HST(3F, 3R)
	Rubber Track(mm):		400 x 90 x 46
	Gauge		920
	Minimum Ground Clearance (mm)		280
Cutting header	Height Adjustment		Hydaulics.
	Cutting Width ( mm )		1550
	Header auger type		Telescopic Screw Conveying
	Pickup Reel		D800mm; Qty 5 Eccentric Tooth(off-centre)
Threshing System	Threshing System		Spiked Tooth Axial Flow
	Threshing Cylinder Quantity		1
	Cylinder Diameter×Length ( mm )		φ540 x 1521
	Cleaning Mechanism Type		Air and Screen Cleaning, Vibrating Sieve adjustable
Grain Storing	Automatic Unloading		950L 360° / 90° Big Grain Tank Capacity 950L with 360° / 90°Unloading Auger
	Manual Operation		350L Small Tank Capacity 400L by Manpower

Our Advantages
We wre open to customize product and soulutions for your local field. Integrated after-sales management system. International mechanism of modern enterprise system. Over 70% sales is oversea market.
