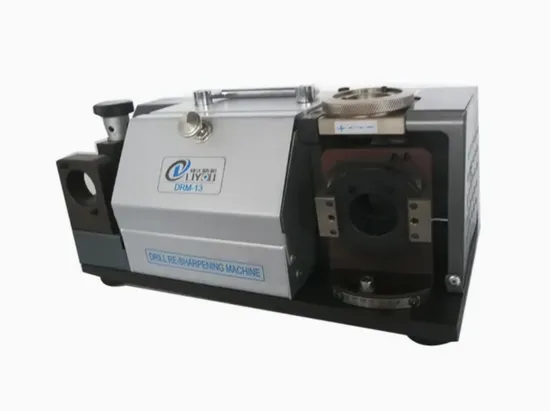

High-Precision Quality Drill Re-Sharpening Machine for Industrial Use

Product Description

Product Description
FUNCTION/FEATURE
1.Applicable to tungsten carbide and high-speed steel drills re-sharpening.
2.Grind rear inclined angle,cutting edge and chisel edge
3.Easy to handle, finish grinding in 1 minute.
5.Apex angle can be adjusted from 90°to 150°,rear inclined angle from O°to 12° according to materials to be processed.
6.Length of drill to be grinded has no limitation.
Grinding wheel:SDC wheels used for tungsten carbide tools,CBN wheels used for high-speed steel tools.
MODEL DRM-50(φ13-φ50)
FUNCTION/FEATURE
1.Applicable for φ13-φ50 tungsten carbide and high-speed steel taper shank drills re-sharpening.
2.Grind rear inclined angle,cutting edge and chisel edge.
3.Easy to handle,Finish grinding in 2 minute.
4.High precision,normatively re-sharpening.
Product Parameters

Model	Applicable diameter of the drill	Grinding scope of the apex angle	Grinding scope of the dorsal horn	Grinding wheel	Length of dril	Power	Motor output	Rated speed	0uter dimensions	Weight	Normal accessories
DRM-13	φ3~φ13mm	90°~150°	0°~12°	D13CBN (SDC Choose)		220V±10%AC	250W	5000 rpm	290x260x230(mm)	16KG	Collet φ3~φ13mm(11pcs),Hexagon wrench*2pcs, Chuck group*1 Group,controller*1pcs
DRM-20	φ3~φ20mm	90°~150	0°~12°	D20CBN (SDC Choose)		220V±10%AC	250W	5000 rpm	345x160x210(mm)	19KG	Collet φ3~φ20mm(18pcs),Hexagon wrench*2pcs,Chuck group*2 Group ,controller*lpcs
DRM-50	Taper-shank drill φ13~φ50mm	118°~180°	4°	D50CBN	Maximmum length 400mm	AC220V	200W	2800 rpm	650*590*350(mm)	68KG	Jacket for taper shank(4-1#,4-2#,4-3#)one for each ron wedge block*2pcs,Hexagon wrench*2pcs, Chuck group*1 Group

Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packaging & Shipping
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment.
