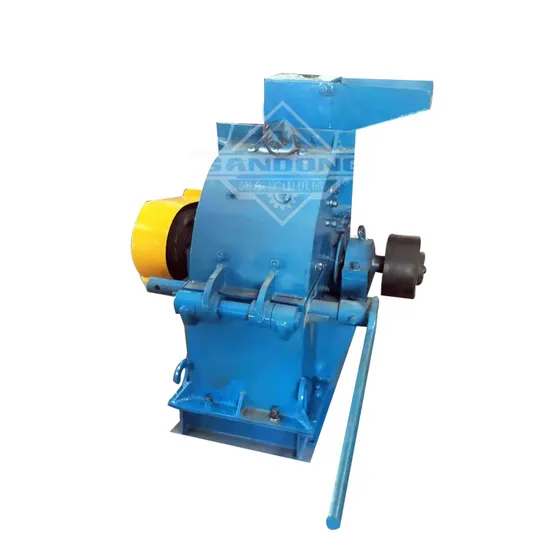

Hammer Rock Crusher for Ore Fine Crushing (PC400*400)

Product Description

Hammer Rock Crusher for Ore Fine Crushing (PC400*400)
This product breaks up materials through the collision of the fast rotating ram and materials. It has the simple structure, big crushing ratio, and high production efficiency, etc. The hammer crusher is developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic material, construction material, highway, burning, etc. This equipment can adjust to the cleft and the discharging granularity as the customers request to satisfy different needs.
Operating principle of Hammer Crusher. In the hammer crusher, the motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the crushed products meeting the required size can be discharged by the outlet and become the final products.
Technical Specifications

Model	Rotor speed (r/min)	Feed opening (mm)	Max feeding size (mm)	Discharging size (mm)	Capacity (t/h)	Motor power (kw)	Weight (t)	Overall dimensions L×W×H(mm)
PC400×400	1500	145×450	100	0-30	5-8	7.5	0.9	844×942×878
PC600×400	1000	295×450	100	0-35	10-12	18.5	1.03	1054×972×1117
PC600×600	1000	295×570	100	0-35	12-18	45	2.14	1315×840×1501
PC800×600	1000	350×570	120	0-45	20-25	55	2.45	1515×2586×1040
PC800×800	1000	350×850	120	0-45	35-45	55	3.05	1515×2831×1040
PC1000×800	1000	580×850	200	0-45	25-40	110	6.5	3206×2210×1515
PC1000×1000	1000	580×1060	200	0-45	40-80	132	7.59	3514×2230×1515
PC1250×800	750	650×850	200	0-45	20-50	132	11.7	2630×1780×2050
PC1250×1250	750	650×1330	200	0-45	90-110	185	13.2	2630×2180×2050
PC1400×1400	750	1050×1540	250	0-45	120-170	280	17.2	2790×2800×2310
PC1600×1600	600	1500×1785	350	0-60	220-280	450	22.8	3350×3120×2660

Why choose our company machine?
1. We are factory (NOT Dealer)
All machinery from Well-tech international equipment Mining Machinery Manufactory are made by ourselves, No trade company make
Commission(many trade companies do not produce the machinery),the lower price with the same goods, good quality, after service can be assured (after service of trade companies will get help from factory).
So please buy from factory
2. We will do our best to satisfy every customer's needs
Producing high-quality and reliable machines is our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost.
3. Training & service
Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.
4. If you are new for this business, I will help you
Many thanks for your trust; we can provide you with the pre-services of design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments, drilling rig, Loader, trucks, excavators and so on
5. We will recommend a suitable type for you and send you a best quotation
Our Services
1) Pre-sale service: Freely provide project designing, process designing, choosing suitable equipment for you.
2) Medium-sales service: Accompany you to complete the acceptance of the equipment, draft the construction scheme and detailed process, and complete process of export
3) After-sales service: We sent engineer to the scene to guide installation, debugging and training operators.
if you are interested in our products,please send me message in below blank,we will reply within 24hours,or call us.thanks your time.
Mobile: +86 15270782221
Salesman: Vicky
