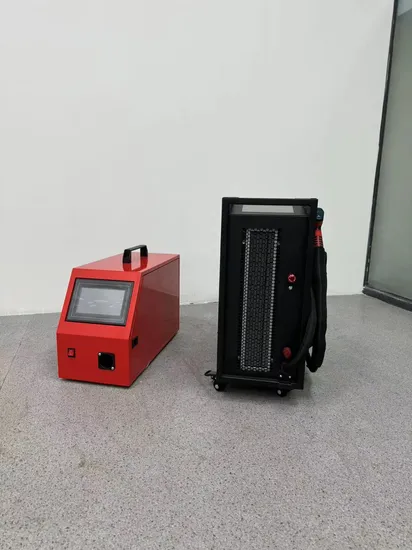

Lightweld 2024 Horizon Laser Stainless Steel Welding Machine Air Cooled

Product Description

Product Description

The Air-cooled laser welding machines has the best fibre optic laser beam for fast welding speed, high quality welds and no consumables. No fear of tank freezing in low temperature areas, the air-cooled fibre laser welding machine is used for welding carbon steel, stainless steel, aluminium, copper and other metal plates.
1. Strong capability:Stainless steel 4.0mm ultimate welding depth, purple copper 1.5mm ultimate welding depth 2. Fast speed:4-10 times faster than the traditional welding method, which improves the production efficiency 3. Good effect:Precision laser control system, stable beam quality, high welding strength, nice weld seam 4. Strong power conservation:Save energy about 80%-90% compare with argon arc welding 5. Long life:Phase change heat dissipation technology,adaptive fan speed regulation, laser 2 years 6. Easy to use:7-inch touch screen, a new generation of intelligent operating system 7. Wide application :Suitable for a variety of materials, various thickness, ultra-thin parts welding 8. Enough safety:Six safety guarantee, air pressure parameter monitoring, high protection to operators and equipment safety
Welding gun
Wire feeder

1. Touch screen display, wire feed speed 15-600cm/min, continuously adjustable, support continuous wire feeding mode and pulse mode
2. Support wire diameter: 0.8/1.0/1.2/1.6mm, can be customized 20./2.5mm

Product Parameters

Model	DPX-A800	DPX-A1200	DPX-A1500W
Max output power	800W	1200W	1500W
Output fiber length	1080( ± 10nm)
Welding thickness	0.3mm-3mm	0.3mm-4mm	0.3mm-5.5mm
Voltage	220V±20V	220V±20V	220V±20V
Indicator light	Cooling method
Cooling method	Air cooling
Working model	Continuous/Modulation
Working environment	Flat, no vibration and shock
Machinery Test Report	Provided
Flat, no vibration and shock	-10-40ºC

Product function
Product Applications
Our factory
Our advantage :
More than 10 years of production experience, reliable quality.
The professional team provides overall solutions, not just selling machines.
Perfect after-sales service team, solve any of your problems within 24 hours.
International engineers in 50 countries, free door-to-door service.
Long warranty period, so you can rest assured to buy.
>>> After-sale Service
Installation and debugging
Technicians can be sent to the factory for training (free of service fee for the first time). Customers only need to provide accommodation for engineers.
Training
Free of charge for training within warranty. But customers need to take charge of the cost for accommodation, air tickets, visa fee.
24/7 online service
All our laser equipment is provided with 12 months warranty. Hoysook Laser offers free maintenance or replacement service if something is wrong with the equipment under warranty.

Packaging & Shipping

Our CE and Our partners
FAQ
Q1. How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video.
We will recommend you the suitable model with the reasonable price.
Q2. How about the lead time?
For the standard machine, the delivery time is 3-7 days after the payment.
For the non-standard machine, the delivery time is 7-15 days after the payment.
Q3. How to install and use it?
We have the instruction Book, Operational manual and Training Video .
We also can provide the training on line by free.
Q4. How to do it if we meet the issue during the operation?
You can send the wrong information to us by mail, we can help us solve it by mail.
phone, or video communication.
Q5. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training course in our company.
