Plastic Bottle Mineral Water Filling Plant

Product Description

Description
Usage: CGF series washing, filling and capping 3-in-1 unit is used for filling kinds of carbonated drink into bottles. In one machine, it can finish washing, filling and capping three processes.
Primary features:
1) Compact conformation, good shape, cozy operation, excellent automaticity and poor labor intensity.
2) Only exchanging "star wheel", "feeding screw" and "arc guide plate" is needed while exchanging model of bottle.
3) The all parts directly contacted with material are all adopted with food stage stainless steel without dead angle, so they can be cleaned easily.
4) Adopting advanced valve to control the inlet flow rate of liquid. It can keep the slight turbulence of liquid level in the solution barrel and ensure the accuracy in filling.
5) Closing feeding valve automatically while no bottle on machine avoid the loss of aqueous feet. Filling automatically is with a high speed and the control of liquid level is accurate.
6) The magnetic-constant-torque device is adopted in capping head to ensure the high capping quality without damage.
7) Adopting efficient cap settling system which carried perfect cap feeding and protection device.
8) It is adopted spiral descent fashion for the support plate for bottom of bottle at the outlet thumb wheel. And to adjust the input height is not necessary for exchanging model of bottle.
9) carried the perfect protection system to overload; it can be used to protect facilities and operators efficiently.
10) Because of applying touch screen for operation, it is possible to realize man-machine conversation whereas the status of device running is clear at a glance.
11) The primary electric components such as touch screen\PLC\transducer etc. are all adopted with well known import products.
Production line name :3000-4000bph PET Bottled pure drinking water filling production line
Description : the production line is start from the water treatment to the finished products .the whole line works automatically .easy operation .
Main parameters :

Production capacity	3000-4000bph based on 500ml
Finished products	Pure water
Bottle size	200ml to 2000ml PET bottles
Label	Shrinking type
Packing	Film wrapping
Code	Ink jet printer

Main machines in the line

1	Pure water treatment system with one stage RO
2	Water washing filling capping 3-in-1 machine
3	Bottle body air drying machine
4	Automatic sleeve labeling machine with steam generator
5	Automatic shrinking film wrapping machine
6	Ink jet printer
7	Conveyor system with motor

Main machines picture showing :
Water treatment system

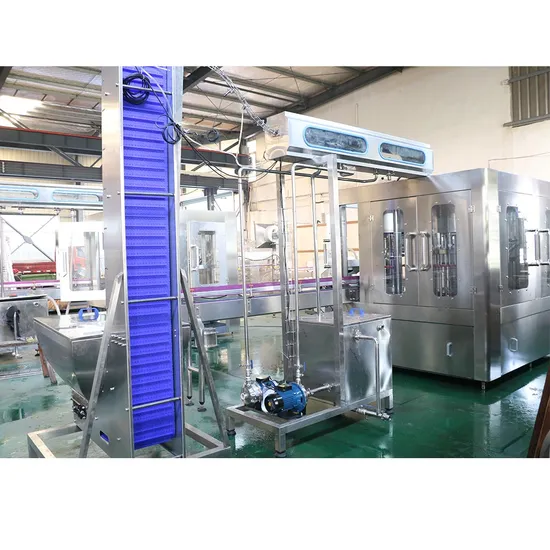

Washing filling capping machine
Bottle air drying machine
Automatic sleeve label machine
Automatic film shrinking wrapping machine
Ink jet printer
Conveyor system
Packing :wooden case
Warranty :12months
