Free Sample Advanced Construction Material Aluminum Composite Panel

Product Description

1.Product Describe

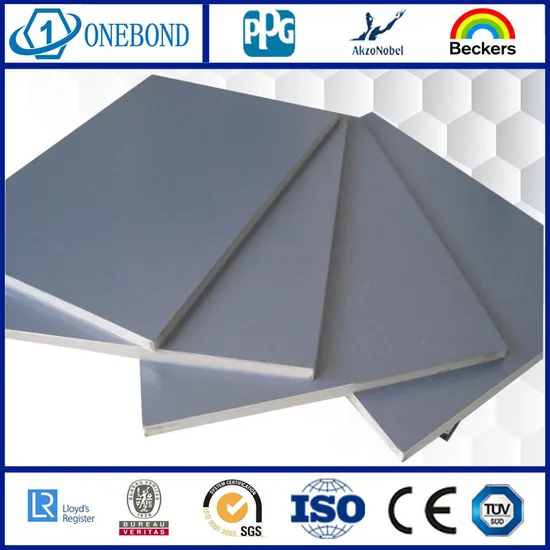

ONEBOND PVDF Aluminum composite panels is a compound panel consist of two pro-painted aluminum cover sheets that are fusion bonded to both sides of a polythylene core.PVDF coating is well known for its outstanding performance in outdoor application, the surface are coated by exclusively high-quality lacquer systems with PVDF coil coating which have an optimum resistance against strong solar radiation,weather and industrial pollution.Those properties are achieved by using UV resistant bonding agents and PVDF top coats.
Why choose Aluminum Composite Panels? Strong, lightweight, high-performing product Easily fabricated and installed Endless formability for radius and column coven applications with a 30-year finish warranty Endless palette of colors Smooth, non-embossed surface Ultimately flat Corrosion resistant Building code approved, performance tested systems Manufactured in controlled environment, leading to increased quality control Includes estimate and design services to eliminate any potential inconsistencies before panels arrive on jobsite Excellent strength-to-weight ratio 100% recyclable material 2.Raw Material A) Front: Aluminum alloy sheet coated with fluoro-carbon resin (PVDF) and polyester resin (PE) roasting painting
B) Core: Nontoxic polyethylene
C) Back: Aluminum alloy sheet coated with polyester resin painting
D) Surface finish: Treated with PVDF and PE resin rolling roasting
E) Surface coating thickness: 30um
F) Aluminum alloy sheet thickness: 0.1mm, 0.12mm, 0.15mm, 0.2mm,0.3mm,0.4mm,0.5mm
3.Aluminum Composite Panels Specification

ITEMS	STANDARD	OPTIONS
Panel Thickness	4mm	3-8mm
Rear Aluminum Skin Thickness	0.5mm	0.21-0.5mm
Standard Panel Length	2440mm	<5800mm
Standard Panel Width	1220mm	<=1500mm
Color	Refer to color chart &finished

4.Applition
a.Building exterior and curtain wall.
b.Decoration and renovation additions for old buildings
c. Decoration of interior walls, ceilings, bathrooms, kitchens and balconies
d.Shop door decoration .
e.Advertisement board display platforms and signboards.
5.Color Chart
6.Packing
FAQ: Q:Are you trading company or manufacture?
A: we are manufacture, We have factory and foreign trade, we can provide more competitive price for customers.
Q:Why do clients choose us?
A:We produce honeycomb panel with 20 years producing expenrience. we have proffesional team to service for clients from design to finish products, provide better solution for clients project problem.
Q:How long is your delivery time?
A: Generally time is 10-15days if we have raw materials in stock.
Q:Do you provide samples? Is it free or need extra fee?
A: Yes, we could offer sample for free charge but do not pay the cost of freight.
Q:What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment >=1000USD, 30% T/T in advance, balance before shippment. or LC at sight.
