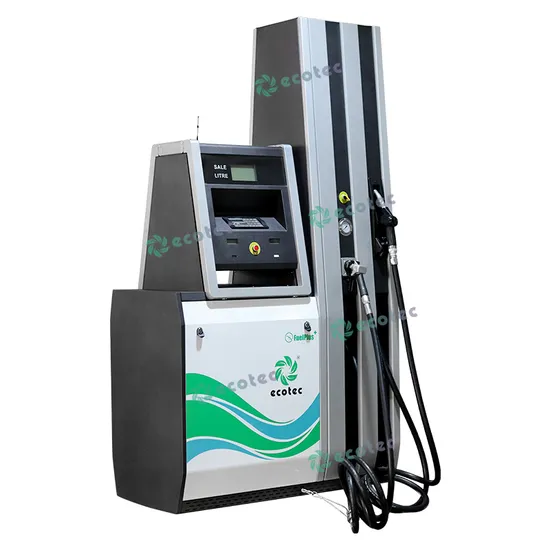

Ecotec New Type LPG Dispenser Fuel Dispenser Vending Machine for Gas Station

Product Description

Product Description Ecotec Hot Sale LPG Dispenser Petrol Pump Mini Station Service Fill Station Fuel Dispenser

LPG dispenser LPG124
Flowrate: 35L/M
1 x Air separator
2 x Flowmeter
2 x Solenoid valve
2 x Differential valve
2 x Safety valve
1 x Controller 2 keyboard2 display
2 x hose with breakaway valve, nozzle &couplings
Package: carton

Detailed Photos

Main Technical Parameters
Motor rated power		750W (or 1000W )
Inlet oil pressure		Submersible pump series≤0.3MPa
Max permissible error		±0.20%
Ambient temperature		-25ºC~+55ºC(low temperature area: -40ºC~+55ºC)
Relative humidity		≤95%
Vapor recovery		95% ~ 105% (with vapor recovery feature)
Unit price setting range		1.00 ~ 99.99 yuan /L
Display after power failure		≥15 minutes
Noise		≤80dB(A)
Flow range		5L/min ~ 50L/min (±10%)
		Large flow 10L/min ~ 100L/min (±10%)
		LMaximum flow with vapor recovery feature 45L/min (±10%)
Power		Common: AC380V+10%, -15% (50Hz±1Hz)
		Single-phase: AC220V+10%, -15% (50Hz±1Hz)
		Vehicle-mounted: DC12/24V±10%
Single measurement range		Amount: 0.01 ~ 9999.99 yuan
		Volume: 0.01 ~ 9999.99 L
Cumulative measurement range		Amount: 0.01 ~ 99999999.99 yuan
		Volume: 0.01 ~ 99999999.99 L

Packaging & Shipping Standard Carton or Wooden for transportation

Our Services Ecotec design and manufacturing
Precise, convenient and safe, Customer and user first is the top priority in Ecotec design and manufacturing, J series is the dispenser with highest accuracy, quality, durability and reliability that always provides utmost satisfaction for all
Ecotec top after-sale support
Ecotec offer 1 year warranty and full life tech support for all products. More customer choose ecotec considering the quick response and professional aftersell support.
Owner and User
Fuel dispenser is the essential dispenser for service stations, benefits to both service station owners and drivers, user-friendly and safe best partner that provide greatest fulfillment for all
Wide Range of product lineup
Product lineup meets various requirement of sites and customers, the best model with the best function,
suitable for single nozzle to 8 nozzle
suitable for both suction and submersible
suitable for Gilbarco, Tatsuno, Tokhem Bennett, LPG and CNG dispenser
suitable for regular flow rate and high flow rate
Option with TV, LED, Printer, Bank Card reader etc

Company Information
WENZHOU ECOTEC ENERGY EQUIPEMNT Co., Ltd as a professional supplier of Petroleum equipment, Energy device, can offer customer the ′s need, and struggle for it, Looking forward to cooperate with you better products with better price.
Ecotec Energy is founded in 2019, but the Ecotec team are all with experience for over 10 years. We can package service from Design, Manufacturing, Delivery and after-sale service, we have exported to over 60 countries now, and have agent in Africa, Middle East, Asia and South American countries.
Here Eectec Energy are on the position to offer the below products:
1. Fuel station: Fuel dispenser, Pump, Meter, fuel accessoires, Ablue and contrainer stations
2. LPG station: LPG dispenser, LPG pump, LPG meter, LPG Tank, LPG skid and other LPG station equipment
3. CNG station: CNG dispenser, CNG compressor, CNG cylinder and skid type CNG station
4. LNG Station: LNG dispenser, LNG pump, LNG pumping skid, LNG vaporizor etc
5. Valves for petroleum industrial: Ball valve, Gate Valve, Global valve, Check valve with differnet standard
6. Station Automation system: Station Retail system, Cell phone APP system, Tank Gauging system
7. Auto Parts: Tyre inflator, Wheel Balancer, Car Washing Machine etc
Customer and Dedication is what we standarding for, we will alwasy focus customer
