Remote Control Fast Electric Hoist From China Factory

Product Description

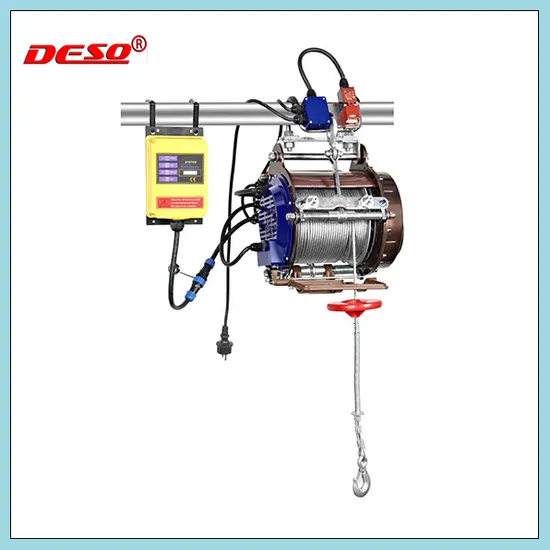

Remote Control Fast Electric Hoist
Features:
* Unique patented design and elegant shape, which hooks to scaffolding and makes the job of getting building materials etc to upper storeys and roofs much easier and safer
* Suspending style with protection hook allows for convenient and reliable mounting.
* The unique automatic rope winding system lines up the steel rope with no mess, no squeeze and increases the rope by over 5000 times
* Special rope drum for a maximum of 50m steel rope, high speed 22m/min, wider range
* The Up&Down limiting position device meets European Standard EN-14492-2+A1/AC:2010. Thermal overload protection on the motor is added for much safety
* Easily change the steel rope without needing to disassemble
* The pulley hook allows double lifting capacity
* Specially used in various workplaces harmful to human body, or some small workplaces such as chemical plants
Technical parameter

Work frequency	RF433MHz(50CH)
Emission distance	≤100m
Receiving direction	360°
Remote control emitter power	≤10mW
Working temperature	-20ºC~65ºC
Relative humidity	≤85%

Specification

Item NO.	Rated volt (v)	Input power (w)	Rated lifting weight (kg)	Lifting speed (m/min)	Lifting height (m)	Qty/CNT (pcs)	Measurement (cm)	G.W/N.W (kg)
DY-88	230V/50Hz	750	88	22	50	1	51×41×45.5	34/33
DY-120	230V/50Hz	1000	120	22	50	1	51×41×45.5	35/34
DY-200	230V/50Hz	1300	200	21	40	1	51×41×45.5	36/35

If you need more details or have any questions, please feel free to contact us, we are more than pleased to do any help. Thanks!
