Flexo Plate Inline Washing Machine for Huangguang, Strong Flexo Plate
| US$30,000.00-40,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DB-SFP
Application
Digital & Analogue Flexo Plate (Solvent Base)
Max. Plate Size
2540X1320mm
Plate Thickness
1.14mm-7.0mm
Max. Speed
260-500mm/Min
Voltage
380V/50Hz
Transport Package
Wooden Case
Specification
920/1060/1320
Trademark
DB Graphics
Origin
Shanghai
Production Capacity
100
Product Description
Brief introductionDB-SFP is the new product designed by ourselves which is with the function of digital flexo plate developing by rotary and flat brush washing. Applicable to all kinds of high-quality flexographic plates, the largest working format is 2540x1320mm.
The equipment adopts PLC control and touch screen, customers can achieve easy operation due to the clear and simple operation interface as well as the data memory function.
Specification
| Model | DB-SFP-920 | DB-SFP-1060 | DB-SFP-1320 | DB-SFP-1320L | |||
| Plate application | Digital & analogue flexo plate (solvent base) | ||||||
| Max. plate size | 1430x920mm | 1520x1060mm | 2030x1320mm | 2540x1320mm | |||
| Max. plate width into processor | 920mm | 1060mm | 1320mm | 1320mm | |||
| Brush length | 980mm | 1120mm | 1380mm | 1380mm | |||
| Plate thickness | 1.14mm-7.0mm | ||||||
| Conveyor speed | Max. 500mm/min (suggested speed: 260-300mm/min) | ||||||
| Solvent temperature setting | 28-35ºC(depending on the solvent brand) | ||||||
| Solvent temperature control | ±1ºC | ||||||
| Brush for black mask washing | 8pcs flat brushes + 1pc rotary brush | ||||||
| Brush for second part washing | 2pcs flat brushes + 7pcs rotary brushes | ||||||
| Plate fix method | Self adhesive fixed onto the stainless steel plate/ Hanging nails | ||||||
| Brush pressure | Automatic mechanical adjustable (0-7mm) | ||||||
| Solvent concentration detection | By flow detector | ||||||
| Dimension(mm) | 5000x1790x1075 | 5370x1790x1075 | 5500x2050x1075 | 6000x2050x1075 | |||
| Voltage | 380V/3PH/50HZ | ||||||
| Power | 5.5kw | 6kw | 6.5kw | 7kw | |||
| Weight | 650kgs | 750kgs | 1050kgs | 1250kgs | |||

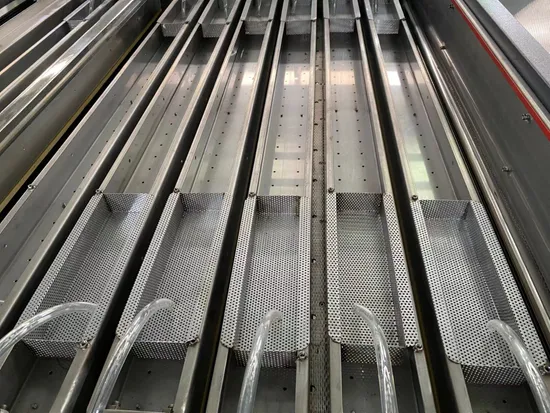

Machine picture
