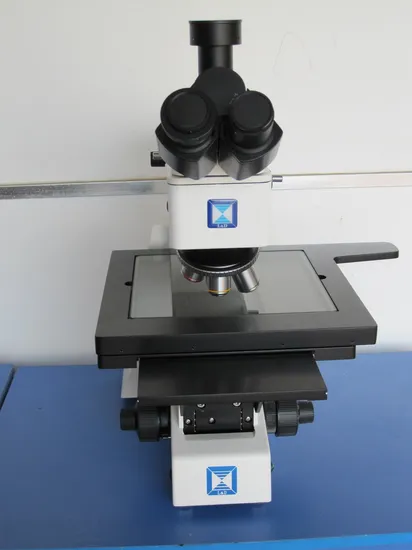

Reflected and Transmitted Illumination Upright Metallurgical Microscope (LM-308)

Product Description

Reflected and Transmitted Illumination Microscope (LM-308)
Usage
Upright bright & dark field Metallurgical Microscope LM-308 is used to observe and identify the structure of various metal and alloy, widely used in institute and laboratory
Feature
1) Infinitive optical system assure the excellent optical functions
2) Kohler illumination
3) For bright and dark field observation
4) For Differential Interference contrast observation, DIC observation
Standard delivery
Main unit: 1pcs
5x, 10x, 20x, 50x, 80x bright & dark field objective lens: 1pc each
12V/50W Osram halogen bulb: 1pcs
Green, blue and yellow filter: 1pcs each
Polarizer and analyzer: 1pcs
Anti-dust cover: 1pcs
Optional accessories
40x, 60x, 100x bright & dark field objective
DIC observation unit
0.5x, 1x, C-mount camera adapter
5M,10.0M, 14.0M, 20.0M Pixel digital, Color CCD camera
Analysis software
Examine software
Technical data

Eyepiece	WF10X/20
Objective lens	5x, 10x, 20x, 50x, 80x
Mechanical movable stage	Size: 280*270mm Travel: 204mm*204mm
Interpupillary distance	53mm-75mm
Binocular tube	Inclined 30º.
Diopter adjustment	±5 diopter
Illumination	12V/50W halogen bulb
Power supply	110V/220V

Quality System
1. Establish the quality management system based on ISO9001, improve quality inspection, and ensure that all the finished products are qualified.
2. All our measuring machines are with CE certification
3. All our measuring machines are assembled and adjusted with linear accuracy, so that the instrument accuracy is guaranteed by hardware assembly and adjustment to the greatest extent.
4. Our professional technical service team is familiar with the principle, structure, assembly, and software debugging of the instrument, freeing customers from worries!
5. We has provided professional and complete measurement solutions for many large and medium-sized enterprises at home and abroad, and
has won the trust of customers! After-sale Service
1. Free professional operation training
2. Warranty: 18 months instead of 12 months
3. Regularly upgrade of software is available free
4. Available lifetime technical support
