China Paper Faced Gypsum Board Production Machine Top Quality

Product Description

Product Description

Hebei LVJOE Machinery Manufacturing (group) Co.,Ltd was established in 1998, it's a diversified development enterprises with researching, designing, manufacturing, international trade, project equipment integration.
Paper faced gypsum board production line is one of our main product in the global market. More than 100 projects are well installed and running up to now!
Automatic process, high quality, long-term service are our advantages compared with other products!

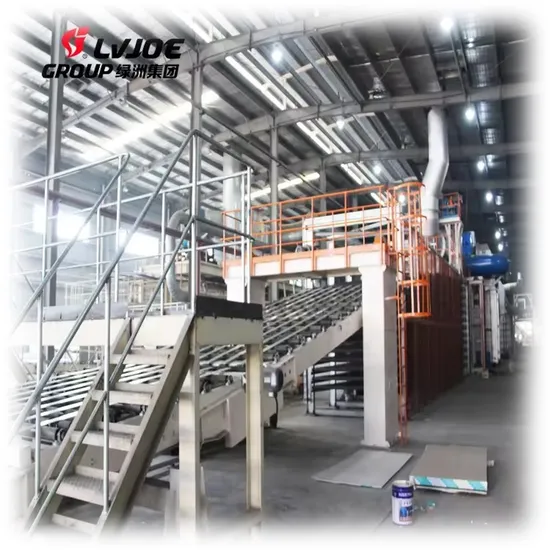

Detailed Photos
All of our production line is designed and manufactured totally according to our clients' requirements.
Just send us your workshop drawing with the scale, we'll not only make the production line for you, but also design all the gypsum board manufacturing workshop for you. Our engineers will contact you and get your opinions during the whole design process.
In this way, after approx 3 month, you can get a well running automatic gypsum board factory.
There will be a high area utilization and scientific electrical wiring patern, which can make your factory smooth and efficient.
The machining quality is our main power in global market. We have strict quality control system and update our machine every year.
As a 20 years gypsum board machine manufacturer, we have calculate more than 50 enginners to process the frames, rollers, etc., with a highly professional standard.
We have our own laboratory and gypsum association to ensure the quality of our machine and the boards.Welcome to visit our processing workshop. Certainly, when your project is being manufactured, any time, you can hold a video meeting to have a look about the process and progress.
Even if your city is relatively cold or hot in the most time of the year, we'll handle it with the specific material and design.
The heating and drying system of the production line is with our patents.
No matter what heat source you want to use, the high heat efficiency will largely save your daily running cost.
On the other hand, the drying tunnel and the heating chamber with intelligent control, can guarantee the hot air running orderly in the tunnel, which is also a necessary potint to produce the qualified gypsum board.
No need to worry about choosing the heat source even if you just start your business-supply us the local price of different source and we can calculate the daily or yearly cost and give you a suggestion to choose.
The high integration control system-well programmed PLC will help you get rid of debugging the system by operate one and one single machine.
All the working condition is considered when programming. Our engineers will introduce the function and train the workers about the daily use. Through our many years' effort, the whole system is easy to use and change the parameter. Make it simple is our service aim.
If you want some functions when applying the production line, just tell us, our technicians will communicate with you and make it for you.
In a word, our product is not only a set of machine, but also a intelligent system.

Product Parameters

Board Type	Drywall board, ceiling board, decoration board, etc.,
Board Dimension	(Commonly) Length: 2000mm-3600mm, Width: 1200mm-1250mm, Thickness: 8mm-20mm
Heat Source	Coal, Natural gas, LPG, etc.,
Input Material	Gypsum powder, starch, water, foam agent, additives.
Output product	well packed gypsum board
Automatic Level	90% automatic, less than 10 workers every shift, customizable.
Dynamic Type	Electric, hydraulic, pneumatic.

Raw Material Calculated Consumption
Gypsum Powder	6.8 kg/sqm
Face Paper	0.48 kg/sqm
Modified Starch	0.035 kg/sqm
Foam Agent	0.008 kg/sqm
Glue	0.005 kg/sqm
Fiberglass	0.025 kg/sqm
Electricity	0.3 kWh/sqm
Water	4.8 kg/sqm

Installation Instructions
1. Installation
We will send our installation technician team to your site. They will instruct the installation, and you just need hire some workers to operate. Our team won't leave until your project is well constructed.
2. Debug
We will send our electric engineers to your project when the installation is finished. They will debug the system according to your productivity and ensure the finished board quality meet your demands. On the other hand, they will teach your workers how to use and repair the equipment.
3. Formula
We will supply the raw material formula to you according to your board quality. You can buy them according to our formula for long term use. We can also supply the raw material to you.
4. Upgrade
We supply the life-long no end service. If you have any problems in the future, free feel contact us. We'll supply the technical consultation for free.
5.Spare Parts
There will be 2-year-time spare parts and wearing parts free for you. And the catalog of it will be in the quotation. Certainly, if you need any parts more, we can supply as well.
Company Profile
FAQ
Are you a factory or a trading company?
We are a factory. All the related process commercially or technically, feel free contact us!
What information do you need to make the quotation?
The output per year, the type of the heat source, better with the gypsum ore test report. The more information we get, the suitable of the project will be. It's simple and just tell me what you want to do, we'll make it for you.
Can you calculate the daily running cost for the project?
Certainly, we'll support the daily or yearly raw material cost including the dry additives, water, natural gas, etc., to you for free, if you need it.
What's the after-sale service?
We'll take in charge of the installation and debugging when the product arrive your site. We will also supply 2-year-time wearing parts and spare parts for you. Solve any questions you meet.
How's the quality control of your factory?
We have our own QA/QC team controlling all process and product. We also have our own gypsum lab in factory to research new technology and test new design product.
