PET bottle Preform Making Machine Price /Manufacturers Made In China

Product Description

Product Description

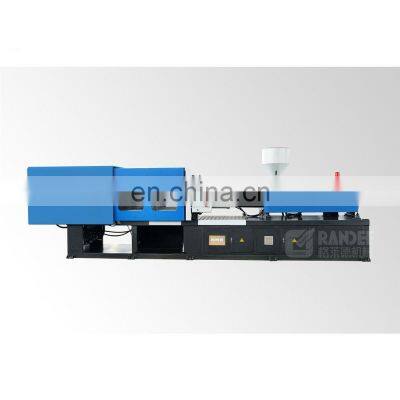

PET Preform and PE Cap Making Machine Price
Product Description
Machine Features:
Injection molding machine usually consists of the injection system, clamping system,
hydraulic drive system, electrical control system, lubrication system, heating and cooling
systems, security monitoring systems and other components.
Working principle of injection molding machine is similar with an injection syringe, it is by means of a screw (or plunger) of thrust, make good plasticized molten state (ie,
viscous state) good plastic injected into the closed mold cavity to obtain shaped
articles after curing.
Injection molding is a cyclic process, with each cycle including: quantifying feeder -
molten plastics - pressure injection - filling mold cooling - open mold and pick up
products. Take out the plastic parts and then go into next cycle operation.
Main machine :
PET Preform Injection Mold
Cap mould
Screw

Main technical parameter:

Item	Specification
Screw diameter	mm	50
Theoretical Shot weight	CM3	442
Shot weight	gram	402
Max Injection pressure	kg/cm2	1960
Theoretical Injection rate (PS)	CM3/sec	196
Plasticizing capacity	g/s	26
Screw stroke	mm	225
Screw torque	N.m	1310
Screw speed	rpm	250
Heating power	kw	13.6
Clamping force	ton	160
Opening stroke	mm	460
Mould height	mm	180~500
Space between tie bars	mm	480×480
Ejector force/stroke	ton/mm	45.2/115
Oil pump motor	kw	15
Machine size	m	5.2X1.3X2
Packing size	m	5.62×1.48×2.23
Machine weight	ton	5
Cycle time	sec	8-10

Packaging & Shipping
Related products
Company information
Workshop detail
Our team
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare pats?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Contact information:
