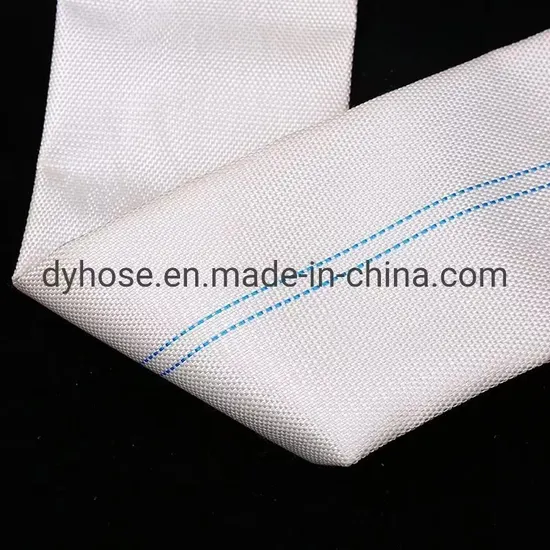

Single Jacket PVC Fire Hose for Nozzle

Product Description

Product Description Description
PVC LINING FIRE HOSE CONSTUCTIONS:
Lining: PVC
Jacket: Single jacket made of high intensity of polyester filament or polyester short-fiber
Features
Thinner and more soft, lighter and more convenient to use. High pressure resistance, low temperature resistance, anti-corrosion. aging resistance.wear-resisting Different color available: White, red, green, blue etc. as request We can provide length: 10m - 30m as request
Technica Data Sheet

Diameter		Working Pressure			Burst Pressure
Inch	mm	BAR	MPA	PSI	BAR	MPA	PSI
1"	25	13 to 25	1.3 to 2.5	190 to 365	39 to 75	3.9 to 7.5	570 to 1090
1-1/4"	32	8 to 25	0.8 to 2.5	120 to 365	24 to 75	2.4 to 7.5	350 to 1090
1-1/2"	38	8 to 25	0.8 to 2.5	120 to 365	24 to 75	2.4 to 7.5	350 to 1090
1-3/4"	44	8 to 25	0.8 to 2.5	120 to 365	24 to 75	2.4 to 7.5	350 to 1090
2"	51	8 to 25	0.8 to 2.5	120 to 365	24 to 75	2.4 to 7.5	350 to 1090
2-1/2"	64	8 to 25	0.8 to 2.5	120 to 365	24 to 75	2.4 to 7.5	350 to 1090
2-3/4"	70	8 to 25	0.8 to 2.5	120 to 365	24 to 75	2.4 to 7.5	350 to 1090
3"	75	8 to 25	0.8 to 2.5	120 to 365	24 to 75	2.4 to 7.5	350 to 1090
4"	102	8 to 16	0.8 to 1.6	120 to 235	24 to 48	2.4 to 4.8	350 to 700
5"	127	8 to 13	0.8 to 1.3	120 to 190	24 to 39	2.4 to 3.9	350 to 570
6"	152	8 to 13	0.8 to 1.3	120 to 190	24 to 39	2.4 to 3.9	350 to 570

More size is available, pls contact us for more information. Hot Products
