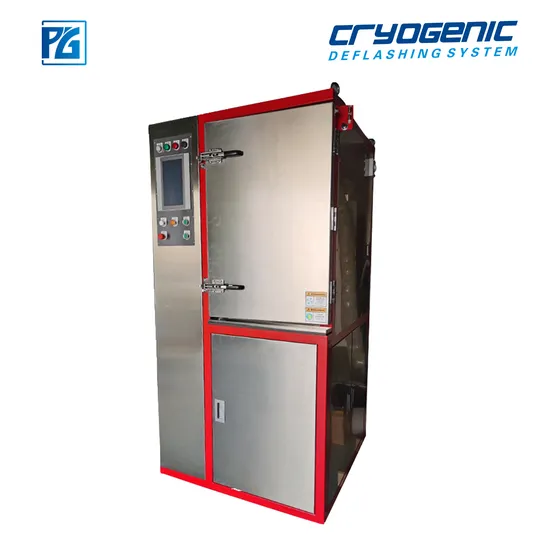

Pg-60t SUS304 Automated Cryogenic Deburring System for Rubber Parts

Product Description

Introducing the PG-60T Cryogenic Deflashing & Deburring Machine (60 Liter), engineered for unparalleled precision in deflashing. Product Description PROCESSING PRINCIPLE
As the temperature plummets, rubber and plastic parts become hardened, brittle, and crystallized, losing their flexibility. At this brittle stage, they break easily under external force. Since the flash on molded products is thinner than the actual product, it becomes brittle quicker in low temperatures. The cryogenic deflashing machine capitalizes on this principle, operating precisely when the flash is brittle while the product retains its flexibility. High-speed, specially-designed plastic media efficiently strike and remove the brittle flash, ensuring no damage to the product.
Product Feature
FUNCTIONS
Our machine excels in efficiently removing flash from small rubber and plastic components such as O-rings, gaskets, and other molded parts.
Through advanced cryogenic processing, flashes are initially frozen and subsequently removed by high-speed projection media (Polycarbonate blast), significantly improving the surface quality of molded rubber and plastic parts.
Product Specification / Models
APPLICATIONS
A. O-rings and irregular rubber parts of various materials and sizes.
B. Microelectronic product components.
C. Precision elastomeric parts.
D. Precision injection-molded plastic parts.
E. R&D production runs.
F. Die-cast products, including parts made from zinc, aluminum, and magnesium alloys. Our Advantages FEATURES
High Efficiency: Capable of replacing 60-80 workers in flash removal.
High Precision: Removes tiny, hardened flashes that manual labor cannot, enhancing product precision.
Low Cost: Provides a cost-effective alternative to manual processing. SPECIFICATIONS

TECHNICAL INFORMATION
MODE	PG-60T
SIZE(L*W*H)	1000*1000*1950MM
WEIGHT	700KG
POWER	Ac380v 50Hz
ELECTRICTY	6Kw*3Ph
TEMPERATURE	-130 - +50ºC
PRESSURE	0.5-0.7Mpa
BARRAEL CAPACITY	60L
EFFECTIVE CAPACITY	20L
WHEEL SPEED	3000rpm - 7200rpm
COOLING MEDIA	Liquid Nitrogen
OPETATION MODE	Touch Screen
FRAME	SUS304
WHEEL DIAMETER	AL φ250mm
BLASTING SPEED	105.7m/s
PROCESSING ABILITY	200-250kg per day

OPERATION PROCESS FEATURES
High Efficiency: The machine can substitute 60-80 workers for flash removal.
High Precision: Removes small and hardened flashes, enhancing product accuracy beyond manual capabilities.
Low Cost: Offers a more cost-effective solution than manual processing. Installation Instructions MACHINE PICTURES
OUR FACTORY AND WORKSHOP WORKSHOP Successful Installations
Installations Completed in Poland and the USA. Country Shipped
