CNC Chair Leg Machine Wood Furniture Making
| US$22,000.00-75,750.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JCW1325R-4H 5AXIS
Spindle Number
8/10 Spindles
Feed Mode
Mechanical
Controlling Mode
CNC
Certification
CE, BV,TUV
Customized
Customized
Condition
New
Color
Customized
Working Size
300mm Diameter,1200mm Length for Each Rotary
Spindle Power
3.5kw Air Cooling * 8
Working Mode
Japan Yaskawa Servo Motor and Driver
Control System
5 Axis Syntec
Software
Powermill
Command
G Code
Option 1
Flat Table
Option 2
3D Scanner
Application
Wooden Furniture Legs,Table Leg,Sofa Leg,Sculpture
Name
5 Axis CNC Wood Carving Machine
Transport Package
Iron Wires, Film.
Specification
300mm diameter, 1200mm length
Trademark
CHAODA
Origin
Linyi, Shandong, China
HS Code
8465990000
Production Capacity
300sets/Month
Product Description

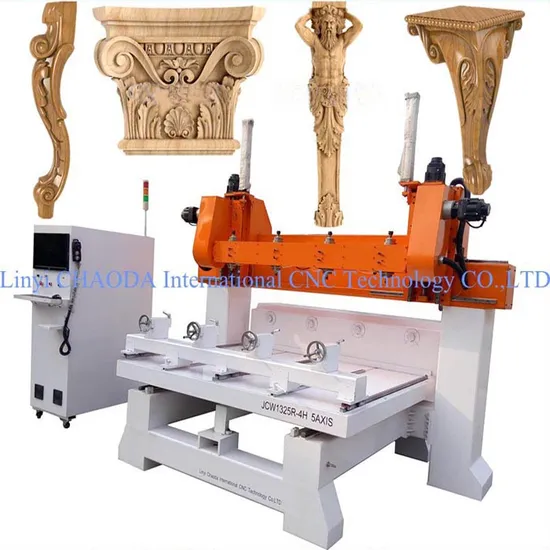

cnc chair leg machine wood furniture makingModel: JCW1325R-8H 5AXIS
>> Application
1. furniture legs,like desk legs,sofa legs,bed legs,stair handrails and so on.
2. 3D sculptures and complex artworks,easily engrave 360 degree Human body,Buddhist statue,sculptures.
>> Feature
1. Lathe bed adopts strong welded steel tube to avoid distortion
2. multi spindles can work at the same time,also can work alone,can control the machine heads independently,
3. TABLE movement, long time use no distortion,more precise positioning accuracy.
4. well compatibility in software: all kind of 3D carving.
5. we can make Multi spindle heads machine and any working size according to customers' requirements.
>> Parameter
| 1 | Model | JCW1325R-8H 5AXIS |
| 2 | Working size | 300mm diameter,1200mm length * 8 |
| 3 | Spindle power | 3.5kw air-cooling * 8 |
| 4 | Spindle rotating | 18000rpm |
| 5 | Max Moving speed | 20m/min |
| 6 | Reposition precision | 0.05mm |
| 7 | Control system | 5 axis Syntec |
| 8 | Working model | Japan servo |
| 9 | Max Burden weight | 1500kg |
| 10 | Voltage | AC380v,50Hz |
>>More Details
>>Sample Photos
contact us as below guide,we will offer you our best price !!
