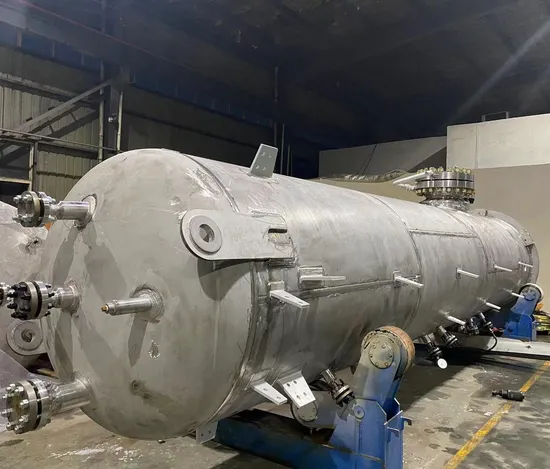

Nr13 Certified Custom High Pressure Hot Water Storage Tank / Stainless Steel
Basic Info.
Model NO.
C-10/6.55
Function
Storage Pressure Vessel
Application
Liquid
Material
Stainless Steel
Pressure
1.6MPa≤p<10.0MPa
Storage Medium
Moncombustible/Nontoxic
Pressure Level
Medium Pressure (1.6MPa≤p<10.0MPa)
Condition
New
Corrosion Allowance
0mm
Installation Method
Vertical
Material Spec.
304
Design Pressure
7.2MPa
Test Pressure
10.1MPa
Transport Package
Iron Frame
Specification
10m³
Trademark
TK
Origin
China
HS Code
73110090
Production Capacity
20
Product Description
| CODE:ASME SECT.VIII DIV.1 2021 EDITION |
| Code Certification:ASME U |
| Operating Pressure : 6.55MPa |
| Design Pressure : 7.2MPa |
| Temperature: 250ºC |
| Minimum design metal temperature(MDMT) at MAWP:-20ºC at 7.2MPa |
| Hydrostatic test pressure:10.1MPa at 0-48ºC |
| Medium name:Water |
| Corrosion allowance:0mm |
| Gross volume:10m³ |
| Empty weight:13481kg |
The products are designed and manufactured based on ASME VIII-1 code, meet the requirements of ASME, PED, AS1210 and other standards, as well as DOSH, CRN, EAC, MOM and other certification modes for you to choose. If you have any customized needs on the pressure vessel, you can contact us.
Zhejiang tank pressure vessel Co., Ltd. is a manufacturer specializing in the production of customized pressure vessels, we have ASME U and UM stamp authorization, and has obtained ISO9001-2015 quality system certification and PED Module H and Module H1 certificates issued by LRQA.
Standards or specifications that our products can comply with:
| Product category | Design Code | Certifications |
| Air Receiver | ASME VIII-1/GB150 | ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS |
| Liquid Receiver | ASME VIII-1/GB150 | ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS |
| Separator | ASME VIII-1/GB150 | ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS |
| Adsorption Tank | ASME VIII-1/GB150 | ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS |
| Heat Exchangers | ASME VIII-1/GB150/GB151 | ASME U/UM, PED Module H/H1/G/B+F, CRN, EAC, DOSH, MOM, AS1210,TS |
