Manual Lathes Machine Lathe Customization Manual Lathe Torno
Basic Info.
Model NO.

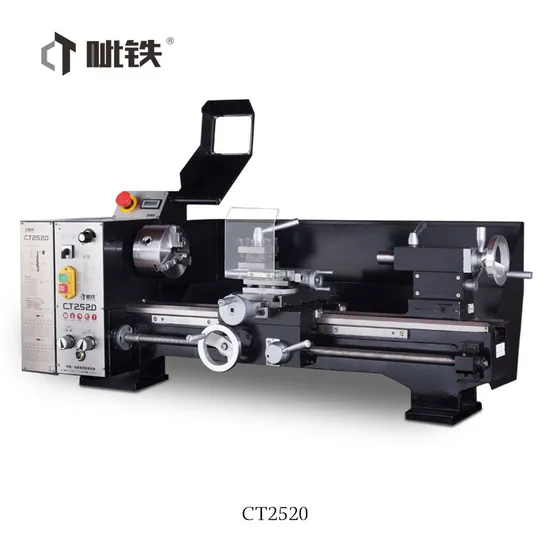

CT2520
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Table
Precision
High Precision
Certification
GS, CE, ISO 9001, ISO9000 2020
Condition
New
Feature
High Precision
Produce Capacity
1000
MOQ
1PC
Transport Package
Standard Wooden Packing
Specification
1200*620*1000mm
Trademark
CTMACH
Origin
China
HS Code
8458190000
Production Capacity
1000
Packaging & Delivery
Package Size
120.00cm * 62.00cm * 100.00cm
Package Gross Weight
160.000kg
Product Description
| Max. swing over bed | 250mm |
| Max. swing over tool post | 150mm |
| Max.machining length | 550mm |
| Spindle taper | MT4 |
| Spindle bore | 26mm |
| Max. travel of tail-stock sleeve | 70mm |
| Taper of tail-stock | MT2 |
| Middle carriage travel | 120mm |
| Small carriage travel | 70mm |
| Metric thread | 0.2-4mm |
| Inch thread | 8-5.6T.P.I |
| Longitudinal feed | 0.07-0.4mm/r |
| Spindle speed range | 50-2500r/min |
| Motor power | 1.1KW |
| Net weight | 140KG |
| Dimensions (L*W*H) | 1100*600*450mm |
| Packing Size | 1200*620*1000mm |
