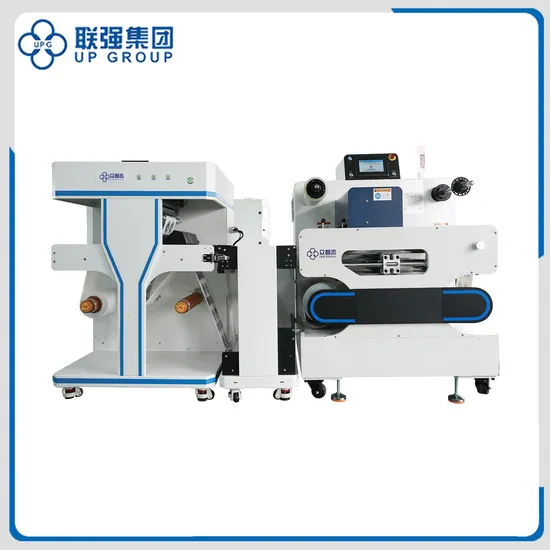

LQ-MD 330M+330B Digital Label Solution Label Printer and Cutter

Product Description

Digital Label Printer + Digital Label Cutter Product Description The use of self-developed inkjet printing system, with environmentally friendly water-based ink, to ensure that there is no ink break in mass production.
The fastest printing speed can reach 18m/mi, and the highest resolution can reach 1200×1200dpi.
Equipped with a three-axis servo constant tension paper path system, which can adapt to different tensions for different grams papers to ensure stable paper feeding.
Integrated with operate the computer standard RlP system and autonomous operation software can optimize most imagesand print quickly.
Suitable for small batch self-adhesive label paper with high cutting accuracy and fully automatic cutting. Product Parameters

Product Name	LQ-MD 330M Label Printer
Ink	Water-based dye/pigment inks
Cartridge capacity	1000ml x 4 colors
Printhead model	297 (HP A3)
Number of printheads	1
Print speed	18m/min(1200*600DPI)
	9m/min(1200*1200DPI)
Print width	297mm
Applicable media size(WxL)	300x300mm
Applicable media thickness	0.5mm(max)
Working envronment	Temperature 15-35°C
	Relative Humidity 50%-70%
Dimensions	885 x 835 x 1335mm

Product Name	LQ-MD 330B Label Cutter
Unwinding maximum lodding diameter	250mm
Max. Material support width	350mm
Cutting length range	10-300mm
Split dimensions	20-320mm
Repeated die cutting precision	0.05mm
Die cutting speed	15m/min (specifcally it is according to die track)
Split speed	30 m/min
Number of cutting heads	4
Number ofsplit knives	standard 5 (selected according to demand)
Document format	PLT
Machine size	1000mm x1015mm x1600mm
Machine quality	1000kg
Power	2kw
