Sanitary Valve Stainless Steel Valve Pneumatic Butterfly Ball Check Diaphragm Divert Seat Sampling Sight Glass Mixproof Valve

Product Description

What JRFL can supply? High precision Valve professional manufacturer
Sanitary Valve Stainless Steel Valve Pneumatic Butterfly/Ball/Check/Diaphragm/Divert Seat/Sampling /Sight Glass/Mixproof Valve
Product Description

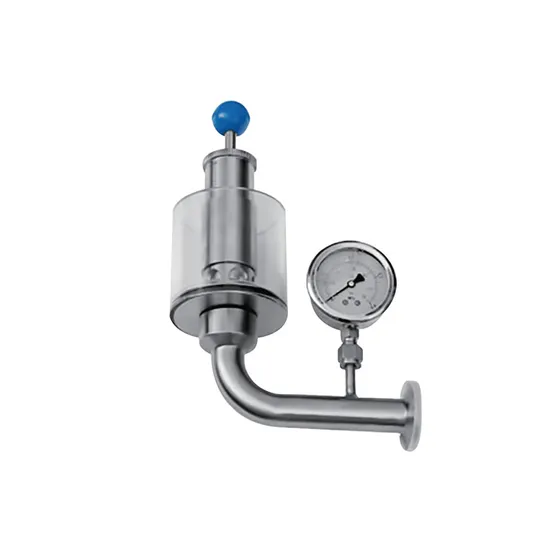

.-----------Sanitary Check Valve/Control Valve series/Other Valves-----------
-------------- Technical Date------------------

Material	Product wetted steel parts	304/316L
	Other steel parts	304
	Provide E N 10204 3.1B Certificate
Seal Material	Standard	EPDM
	Option	VMQ/FPM
	All seal materials comply with FDA 177.2600
Temperature	Running working temperature	VMQ:-50~+180ºC/EPDM:-20~+135ºC/FPM:-30~+180ºC
	Sterilization temperature	150ºC(MAX20min)
Pressure	Opening pressure	≈0.2bar
	Max working pressure	10bar
Surface treatment	Internal surface	Ra≤0.8μm
	External	Ra≤1.6μm
Connection	Connection standard	DIN,SMS,ISO,3A,RJT,IDF
	Connection method:welded,threaded,clamped,flanged

-------------- Application------------------
Sanitary Butterfly Valves are used for the control of liquid flow in beer, beverage, pharmacy field. They are combination of food machines The sanitary Valves. are made by forged material, material grade: AISI304, AISI316L, fully precision machined by CNC machine. The materials are offered for food, dairy, beverage, pharmaceutical, chemical, and many other industries.
-------------- Standard Design------------------
▪ Have different standard of valve series can supply for customers, they are the DIN standard series,3A standard series, SMS standard series, ISO/IDF standard series, BS/ RJT standard series, ASME/BPE etc.
▪ The constitute elements of Diaphragm valve always included: one handle,one ball body with transfixion cavity, valve body, valve central spindle and spindle shaft seal.
▪ The specification of JRFL Diaphragm valve series are welded ball valve, clamped ball valve, threaded ball valve etc. Company Profile
Zhejiang Jiurong fluid equipment Technology co.,ltd is a comprehensive enterprise with R&D,design,manufacturing and sales.The marketing network is distributed at home and abroad.it has imported advanced numerical control machine tools and spectrometers,material detectors,coarse excess detectors,ultrasonic flaw detectors,and other series of production and testing equipment to ensure the quality and accuracy of products.

We keep improving R&D and innovation on core technology and pursuing excellence to ensure the best quality by the advanced equipments,stric quality management and perfect process control.
adcanced equipments mean powerful productivity.we introduced not only the advanced facilities but also the advanced technology to meet and lead the industy modernization demand. FAQ
Q1:What certificate do you have?A: We have ISO 9001, CE certificate.Q2. Can I get free samples?A: Yes, The free samples can be offered for free.Q3. Can I have my own Logo on the product?A: Yes, Simple logo design is available based on not small order quantity.Q4: Can I have my own customized product?A: Yes, your customized requirements for color, size, mark, etc.Q5: Can you produce the products according to my own drawing?A: Yes, we can produce the products according to your drawing.Q6: How long is your delivery time?A: Generally it is about 30-45days depends on the order quantity.Q7:What's your product range?A:Forged Pipe Fitting,Butt welding Pipe Fitting,Pipe Clamps,Ductile Iron Groove Pipe Fitting,OEM Parts,Valves
