Gsw-Sf Handheld Laser Light Welder with Auto Feeder System for Kitchen Ware

Product Description

GSW-SF Handheld Laser Welding Machine
-----The hand-held fiber laser welding machine assists customers in maintaining a safe and high quality weld.
>>> Product Introduction

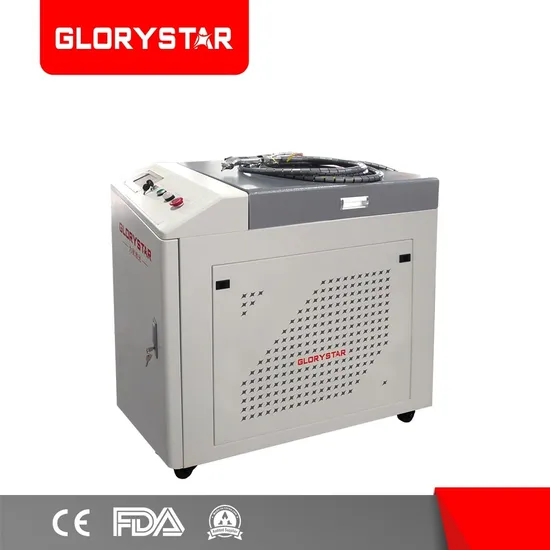

The hand-held welding machine of Glorystar GSW-SF, with all in one design, has built-in cold water system, laser generator, control system, fiber storage space, saving equipment space. For ease of movement, there are casters&wheels at the bottom.
The mini spherical tri-color indicator not only save space, but also indicates the working state of the device.
Spot welding and continuous welding can be achieved with hand-held welding machine, and it's welding power and the duty ratio can be set by the touch screen. Both laser and chiller have alarm protection function, and the red indicator will light up when the alarm is on.
>>> Technical parameters

Name	Fiber laser welding machine	Semiconductor laser welder
Interface type	QBH	QBH
Laser incidence	Coaxial	Coaxial
Laser power	1000W&1500W&2000W	900W&1200W&2000W
Laser wave length	1070μm	915-980μm
Collimated focal length	50mm	30mm
Focusing focal length	100mm	100mm
Protective gas	Nitrogen or Argon	Nitrogen or Argon
Weld head weight	0.95KG	1KG
Cooling method	Built-in water chiller	Built-in water chiller
Electricity demand	220V/380V	220V
Overall size	1045*656*1280mm	1045*656*1280mm
Total weight	218KG	215KG

>>>Advantages 1. The GSW-S1F welding head is designed with the body engineering design method, fully considering the comfort of the customer for long-term use, and has protective measures to light output only when the welding material is docked, to prevent the user from accidentally injuring others. It is easy to install with drawer type protective lens, and it is convenient for customers to carry out maintenance. At the same time, nozzles with different angles can be configured to meet the needs of customers to weld different products.
2. Handheld welding machines adopts fiber lasers or semiconductor lasers, which have many advantages, such as high photoelectric conversion efficiency, small size, maintenance-free, and low failure rate.
>>> Sample
>>> After-sale Service
Installation and debugging
Technicians can be sent to the factory for training (free of service fee for the first time). Customers only need to provide accommodation for engineers.
Training
Free of charge for training within warranty. But customers need to take charge of the cost for accommodation, airfare and visa fees.
24/7 online service
All our laser equipment is provided with 12 months warranty. Glorystar Laser offers free maintenance or replacement service if something is wrong with the equipment under warranty. If it is out of warranty,Glorystar Laser will send engineers to your factory as soon as possible and only charge the cost of accessories.
Accessories supply
IPG laser source is 2 years. Other accessoris is one year except for optical and consumable accessoris. Prolong serve is always available for option. Free of charge for fixing and changing accessoris within warranty. But only changing accessoris, the freight should be charged by customers.
Remote diagnosis
Glorystar Laser can check the running status of the customer's laser cutter through our remote maintenance system. Our technicians can perform troubleshooting via remote access instead of on-site diagnosis and maintenance, it can save you a lot of time.
Additionally, Glorystar Laser will establish a special user profile for all customers who have purchased equipment from us to record your usage, maintenance records and other information. This will help us to learn about customer information more quickly and thus provide necessary upgrades according to customer feedback
>>>About Glorystar
The company has nearly 100 patents, set up R&D center, quality center, Glorystar enterprise university , and established R&D center with the Italian laser brand Promot ec.
After years of experience and high-speed development, Glorystar Laser successively won the "National High-tech Enterprise", "Famous Trademark of Guangdong Province" and other honorary title. It has set up "Laser Application Research Institute" and "Smart Manufacturing Institute". It is one of the brands with high market share of laser technology and laser application in China, and also one of the fast developing companies in the global industry in recent years.

The company adheres to the core values of "Sincerity and faith, hard Work, Open and Enterprising, Self-Criticism, Teamwork and Customer Success". With the mission of "Technology adds to your value", we are committed to becoming the world's leading provider of laser intelligent solutions! Glorystar laser adhere to the quality policy of "no quality, no friends", a leading industry in the formation of 21 quality testing processes to high-quality after-sales service to win the high praise of our customers.
>>>FAQ
We are waiting for your consultation. Thank you!
