Hollow Core Lightweight Wall Panel Machine

Product Description

Precast lightweight wall panel machine /precast concrete wall/concrete precast houses

Product Description
Brief Introduction of lightweight hollow core wall board making machine
This is multi-functional production line, can be full automatic and semi automatic. Can produce different kinds of finished products, including: GRC, gypsum block; Mgo/MgSO4 hollow core wall panel; cement hollow wall panel, etc.
Wall panel Mold car specification:

Name	HLJ automatic lightweight eps cement wall panel line machine for partition panel
Production capacity(pcs/mould)	(20pcs) 3000x600x90mm
	(15pcs) 3000x600x120mm
	(12pcs) 3000x600x150mm
Hydraulic power(KW)	4
Hydraulic working pressure(Mpa)	8
Max. Hydraulic working pressure(Mpa)	16
No. of workers	3 workers per 5mold
Mold dimension (LxWxH,mm)	3100x3200x1300
Mold weight(KG)	7500

Raw material introduction:

Basic Material	Cement
Heavy Aggregate	Sand
Lightweight Aggregate	EPS particles ( Particle size 3-5mm after forming )
	Ceramsite (large than 5mm ),Pumice stone(5-12mm)
	Perlite ,Tire pellets,Construction rubbish,Rice husk
Chemical additives	Like forming agent , water reducer ,cellulose ether ect.

Finished Wall panel pics :
Main Features:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine
Wall panel molding car :
1)Mixing system:This system is mainly comoposed of mixing platform and the mixer. One of the feature is weighing system uses the gravity center of the pressure sensor structure measuring scale design, measuring scale adopts anti vibration and abrasion-proof , the accuracy of measurement is always guaranteed in construction process.
Besides, we adopt double-shaft mixer, which has compact structure, beautiful appearance, stable running, convenient operation, high production efficiency, fully stirring and no blocking,fully sealed design.
2)MOVABLE/FIXED FEEDING MACHINE: It can help convey concrete mixing material into the mold car. It is made up by pump and technical industrial hose, pump convey method avoid the air holes. The feeding machine can be moveable or fixed, matched well with mold car, easily operate.

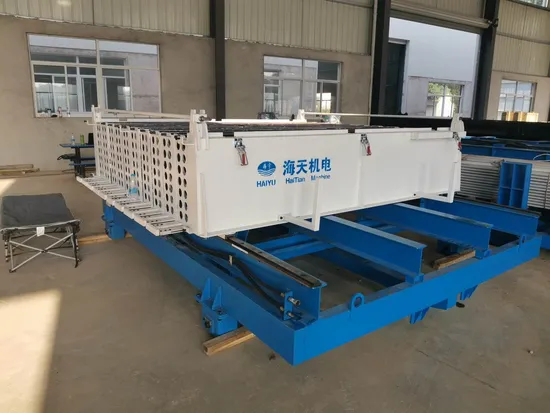

3) Mould car: This is the part to form eps cement sandwich wall panel.It can cast 10pcs to 20pcs panels per time according to different panel thickness. The mold car qty depends on panel production capacity. It can be moveable or fixed.

1. When did your company founded?
Our company was founded in 1997.

2. Where is your company located?
Our company located at Dezhou city, Shandong, China.

3. How do we come to your factory?
If you are in Shanghai, take fast train from Hongqiao to Dezhou East, it takes 3-4h. We will pick you up at the station.
If you are in Beijing, take fast train from Beijing South to Dezhou East, it takes 1.5h. We will pick you up at the station.

4. What kind of after sale service you can supply?
We supply the technical supporting all the time.
We supply one year warranty for whole machine.
We supply free quick wear parts.
We supply low charge continue maintenance when warrenty is expired.
We supply free training to end-users.

5. What payment you accept?
T/T or L/C at sight.
