Factory Direct Supply Calcium Chloride Plant for Large Scale Production

Product Description

Factory Direct Supply Calcium Chloride Plant for Large Scale Production Product Description

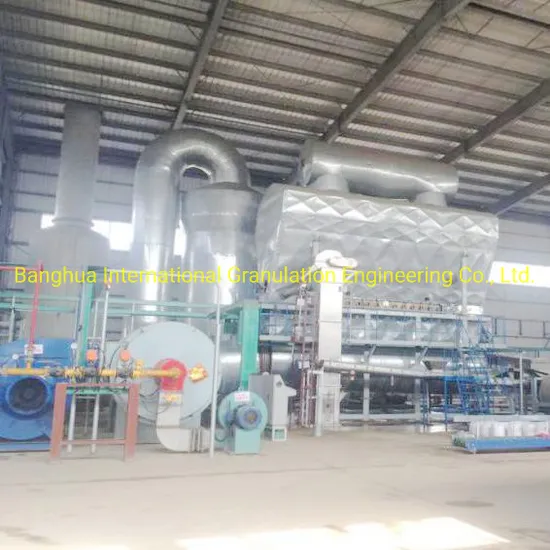

Complete calcium chloride granulation line starts from calcium chloride reaction preparation to final spray granulation for producing anhydrous calcium chloride. It mainly includes three parts: 1. Reaction section, 2. Fluidized bed drying granulation, 3. Cooling and packaging. I. Brief Introduction The atomized solution is sprayed into the fluidized bed granulator, and atomized droplets directly touch with the fluidized material layer (crystal nucleus layer). Before dehydration, the droplets adhere to the surface of crystal nucleus, and form local infiltration layer. Meanwhile, the relatively tiny powders adhere to the local infiltration layer, of which the water is removed gradually. Because of water removal, the powder and droplets become lamellar and adhere to the surface of crystal nucleus. So the crystal nucleus become larger and larger, with this process repeated. In the fluidized bed granulation area, the crystal nucleus is adhered to water droplets constantly, crystal nucleus impact with each other, and water removes gradually, all these make the granules grow bigger gradually, layer by layer, and in uniform, also synchronized with the evaporation of the water. So, this method ensures the uniform and compact structure of the granules, also increase its intensity. Its working principle is mostly accumulated coating granulation, few is reunited granulation Product Parameters
1. Concentration of calcium chloride solution: 35-55%
2. Calcium chloride product: 94%
3. Temperature of solution: <60ºC
4. Capacity: ≥20000 tons per year

Product Name	Calcium chloride granulation plant/Calcium chloride granulation plant/Calcium chloride equipment from Shandong Banghua
CaCl2 concentration	35%-55%
CaCl2 concentration	94%
Power voltage	380V (±5%), 410V (±5%) etc
Frequency	50/60Hz (±1%)
Power consumption	115~125 KWh
Natural gas consumption	180~190m3
Circulating cooling water	2 m3

Features A. Set spray, drying and granulation in one, make granulation realized in one step. B. Parallel flow way of spray drying is adopted, so that heat sensitive materials can be easily operated. C. Two stage drying methods: use spray drying and fluidized bed drying, so the water content can be very low. D. Equipment is operated under closed negative pressure, so no dust generated.
E. Energy Saving and Environment Friendly Key to Continuous Working Continuous fluidized bed spray granulation technology can realize 30 days trouble-free continuous running. The following three tasks must be done to ensure continuous running. 1. Establish a good state of initial fluidization. Unique advanced air distribution plate design provides the premise for combination of liquid and solid with well-proportioned. 2. Unique spray gun provides a micro granulation process for combination of liquid and solid with well-proportioned. 3. Accurate automation process control. PLC or DCS control system is adopted. Packaging & Shipping
Company Profile
Banghua International Granulation Engineering Co., Ltd (hereafter referred as Banghua) was established in 2008. Combining process, engineering experience and manufacturing capabilities, Banghua positions itself in the market of advanced process solutions and process equipment. Banghua provides advanced process technology and complete sets of equipment according to customer's specific requirements. Since 2008, Banghua focus on:

Calcium Chloride (CaCl2) Production Line (Granulation Line or Flaking Line)
Potassium Sulfate (K2SO4) Production Line
Calcium Hypochlorite Production Line
Hot Air Furnace & Heat Exchanger
Rotating belt Condensation Granulator

Banghua has cooperated with clients from Japan, Russia, Thailand, Indonesia, Pakistan, India, Jordan, Saudi Arabia and other countries. Our highly efficient and stable technology creates great value for our customers and has won high praise from our customers. Sustainable cooperation and partnership is our goal, and sincerely hope to establish long-term mutual beneficiary relationship with more global customers.

Banghua avails one design center and two manufacturing sites, with a total covered surface in excess of 10000 m2. Proprietary equipment is manufactured in the two manufacturing facilities.
Customer visiting
Our Advantages
1. Professional with 15-year experience;
2. High quality and competitive price;
3. Customer oriented systematic overall solution;
4. Perfect after-sales service.
5. To provide you with the most cost-effective drying solutions.
6. Offer you full support on design, fabricate, installation service.
7. The updated production schedule is for you in real-time.
FAQ
1. What is the warranty period of the equipment?
Normally 1 year warranty
2. Can we visit your factory?
Sure, we sincerely invite you to visit
3. Can it be customized?
Sure, our equipment can be customized according to the actual requirements of customers.
4. How long is the construction period?
It's about 90 days, but it also needs to be determined according to the specific equipment model, order number, etc., But if you need it urgently, please let us know, we can arrange the factory to rush production.
5. Will you provide installation services?
If you need, we can arrange professional technicians and engineers to guide the installation on site.
Detailed Photos
