Handheld Portable 4 in 1 Cutting Welding Cleaning Fiber Laser Rust Paint Removal Machine 3000W 2000W 1500W Laser Welder for Metal.

Product Description

Product Description

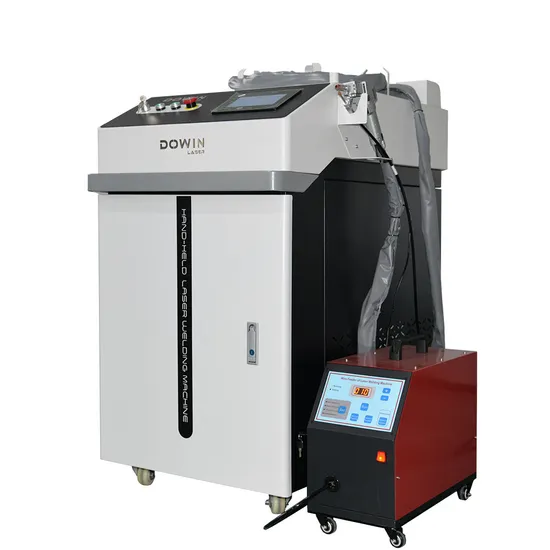

4 IN 1 Portable Fiber Laser Welding Machine Laser Welder
Portable 4-in-1 handheld metal laser welding machine laser welder integrates welding, cleaning, cutting and weld cleaning functions into one machine, with a power range from 1.5 KW to 3KW.

Product Parameters

Machine model	DW-1500W	DW-2000W	DW-3000W
Maximum laser power	1500W	2000W	3000W
Laser wavelength	1080nm
Output fiber length	10M
Rated power	6KW	7KW	8KW
Power configuration	220V/50HZ	220/50HZ	380V/50HZ
Light panel adjustment range	0.1-5MM	0.1-5MM	0.1-5MM
Laser frequency	1-10000HZ	1-10000HZ	1-10000HZ
Cooling system	CW1500	CW2000	CW3000
Aiming and positioning	Red light
Package size	133*77*118cm
Package weight	280KG

Function:
Laser welding function:
Wide range of welding application materials. Can be used to weld metal, carbon steel, iron plate, aluminum, stainless steel and other materials.
Features: Handheld operation, ergonomic, suitable for long-term work.
Laser cleaning function:
Quickly remove rust, grease, resin, glue, dust, stains and production residues.
Features: No need for direct contact with the workpiece. Simple and flexible to use.
Laser cutting function:
Commonly used for cutting metal sheets. Mainly used in hardware, electrical appliances, sheet metal manufacturing and other industries.
Features: Easy, flexible and fast operation.
Weld cleaning function: Rust, oil and oxide removal after welding.
Features: Low power consumption, simple and flexible. No consumables
Detailed Photos
1. Max / Raycus laser source
Max fiber Laser source is combined with high and different power, mini size, superior beam quality, and high light conversion efficiency. It can meet the requirements of precision processing, 3C product welding.
2. Famous brand SUP23T laser welding head
it is only 0.75kg, stable working, and it install safety detection system, and the monitored temperature in real time.
3. S&A & Hanli Brand water chiller
this model chiller is designed for cooling fiber lasers. It can cool the laser and laser head at the same time, and it has multiple uses. In addition, the chiller adopts dual-temperature dual-control mode.
Product Samples
Applicable materials and fields
This device not only serves as the special packaging equipment of battery production, but also can be used in the welding of metal materials, such as relay, sensor and various electronic components, etc.
The shape of welding:
point, circle, arc and square, etc.
Company Profile
DOWIN TECHNOLOGY Co., Ltd. specializes in R&D and production of various laser equipment,such as laser cutting machine, laser engraving machine,laser marking machine and laser welding machine.All series machines are with One-three year's warranty. Within the laser engraving and cutting field, Dowin has passed CE and FDA qualifications. Facing the chances and challenges of Global Economic Integration, as well as being offered with opportunities of Knowledge Economy Era, brave and passionate, initiatively implement the enterprise management policy: "Scientific Management, Continuous Improvement, Rapid Development, Credit First, Quality First". We aim to be a professional, branding, and International suppliers for various industrial solutions.
Quality and credit goes all the way. Dowin a company surviving fierce market competition, has very strong national culture, and develops shoulder by shoulder with the world and this Era. We are determined to achieve our dreams step by step with the advantages of high technology.
After Sales Service
Pre-Sales Service: 1.Whether you are a dealer or an end user, as long as you are interested in our laser machines and related products, once you contact us, we will arrange a particular professional at your service to help you have a deep understanding of our products or answer your questions on laser products and laser applications.
2.In order to keep open and convenient communication with you, DOWIN Laser integrates sales and service as one and the same responsible person is in charge of your sales and service.
3.On-Time Delivery
After you confirm the order, we will figure out the delivery date according to the model and production schedule.
For general models, we will arrange production in 7 days or so and we will notify you of the exact phase of production process.
4.Production Process:
Machine Case---Mechanical Parts Installation---Electrical Parts Installation--
-Machine Commissioning---Test for at Least 24 Hours --- Nameplate, Logo and Packaging---Shipping
After-Sales Service:
*Two-year warranty on the whole machine accessories if the machine parts have any problems,we can change the old machine parts to new ones free. *Exceed two year warranty period if the machine parts have any problems,we can offer new machine parts with cost price and you also should pay all the shipping cost. *We offer 24 hours technical support by call,email. *Our technician can give you remote guide online(Skype/MSN/What's app/viber/Tel/Etc) if you have any question. *Machine has been adjusted before delivery,operation disk is included in the delivery.If there is any other questions,pls kindly tell me. *We have manual instruction and CD (Guiding Videos) for software Installation,operation and machine's using and maintenance. 3.Dowin Tech Co.,Ltd supply free technical training for all customers all over the world until the workers from buyer can operate the machine normally and individually. Mainly training are as follow: *Training for Control software operation. *Training for normatively turning on/off operation of the machine. *Instruction of technical parameters, as well as their setting ranges. *Basic daily cleaning and maintenance for the machine. *Solutions for common hardware problems. *Training for other questions and technical suggestions during daily production. 4.Training can be processed in the following ways: *Workers of customers can come to our factory to get the most professional hand-by-hand training. *We can send engineers to customers' country and do training for workers in customers' target factory.However,tickets and daily consumption like food and accommodation should be afforded by customers. *Remote training through Internet tools like Team-viewer,Skype and other instant communication softwares.
