Filtration Equipment-Polymer Melt Filter for Plastic Extruder/Double Piston Continual Screen Changer

Product Description

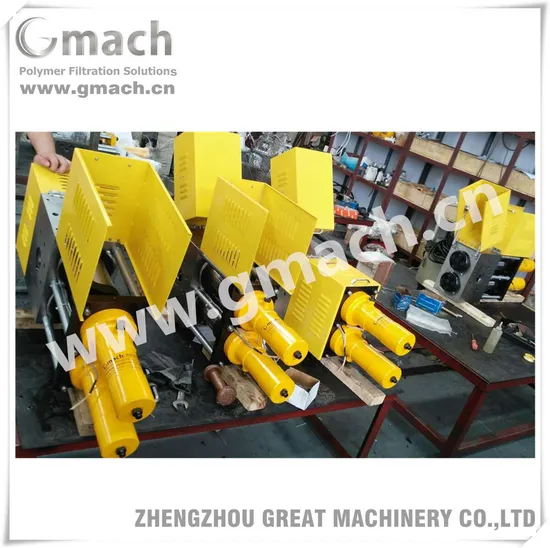

Filtration equipment-polymer melt filter for plastic extruder/double piston continual screen changer
Plastic granulators /recycling granulators filtration part/continuous screen changer
Singe layer film blowing machine used continuous screen changer
Plastic recycling machine filtration ststem continuous screen changer with dual pistions
Plastic extruder filtration system continuous screen changer with large filtration area
Screen changer manufacturers continuous screen changer for plastic extruder
Benifits of this GM-DP-R seriespolymer melt filter
1, Eliminates line shutdown thus increasing production
2, Leakage-free process
3, Two breaker plates design increases filtration area compared to single breaker plate design
4, Reduced downtime & scrap
5, Reduced inlet pressure at extrusion die
6, Reduced temperature variations in the melt ·
The structure and parameter data of GM-DP-R series of continuous screen changer
1)The main body of the screen changer
Raw material: Alloy steel(38CrMoAlA)
Surface treatment: Nitriding treatment
Depth of Nitrated Layer: 0.40-0.70mm
Nitrided hardness: 950-1050Hv
Fragility of nitration: Less than grade 1
Flow channel treatment: Chrome plated
Depth of chromium-plating: 0.05-0.1mm
Hardness of surface after chromium-plating: HV950HV
2)Drive system: Hydraulic unit:
Hydraulic unit
3)Control system
Electrical controlling system: Warnning device, pressure and temperature transducer, are included, and this part is optional by customers
Application show
Quality inspection
We take only first-class steel and check every production procedure to ensure every dimension is produced precisely. A final complete inspection will be executed before delivery. We guarrantee that every set of scren changer from our factory is the best quality.
Packaging
Seaworthy packaging
Commissioning
We provide the operation manual for customers to gudie to install the screen changer, and at the requirement of user, salers should send technician to install and commissioning the die at site of Buyers, expenses of the trip should be borne by Buyers.
After-sales service
12 months with proper operation by user, all the spare parts shall be replaced free of charge under guarantee period, fee for transportation and packing will be borne by users.

Type	ScreenD&A		Overall & dimension (mm)				Heating power (KW))	Output (kg/h)
	Dia (mm)	Filtration area (cm² )	L	W	H	L1
G M -DP-R-80	60	28x2	180	170	280	700	2.4/3.2	30-180
G M -DP-R-100	80	50x2	220	200	320	810	3.5/4.7	80-280
GM -DP-R-120	100	78x2	250	220	360	970	5.0/7.2	220-480
G M -DP-R-155	130	113x2	320	270	450	1100	8.2/11.1	300-700
G M -DP-R-170	145	165x2	370	310	480	1320	9.4/12.7	400-1100
G M -DP-R-195	165	214x2	400	380	550	1470	10.2/13.8	650-1500
G M -DP-R-220	180	254x2	440	410	590	1620	13/17.5	800-1800
Remark: The output rates depend on the individual extrusion process parameters.
