Xk2150 CNC Gantry Type Boring and Milling Machine with Fixed Columns / Customerized Machine

Product Description

Product Description
APPLICATION

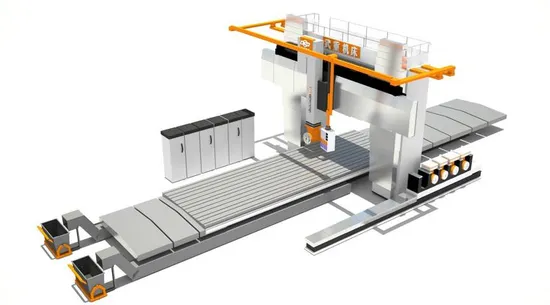

XK21 series adopts fixed columns and one movable crossrail. One high power ram type boring and milling head is mounted on crossrail. 4 feeding axis an d one auxiliary axis(Table- X axis; boring and milling head- Y axis; ram- Z axis; crossrail- W axis; auxiliary axis: attachment head cradle- U axis).
Various attachment heads could be adopted as per demand of machining (right angular milling head, universal milling head, lengthened spindle head and inverted milling head, etc). At single set-up, it can finish internal and external 5 surfaces machining (boring, milling, drilling, reaming, and tapping, etc. 3 axis simultaneous control for contour milling.
The main performance characteristics:
Automatic clamping of tool/attachment head by boring and milling head. Attachment head4x90°/2.5°-2.5°auto indexing. Forward/backward tilting for double tool track prevention. Ram adopts hydraulic balance device; crossrail adopts auxiliary beam for load relieving; cros ssrail feeding adopts double motor drive in synch with double inspection. Table bed guideway and crossrail slide guideway adopt closed type hydrostatic guideway with multiple-point pump with constant flow for oil supply. The machine is equipped with fully digital Siemens SINUMERIK 840DSL system. Main drive adopts AC spindle motor. All axes with relevant speed regulator and drive device are driven by AC servomotor drive simultaneously controlled by Heidenhain linear scale and encoder. The machine equipped with ATC(automatic tool changer) becomes a double column boring and milling center. Product Parameters

Item	Unit	XK2120	XK2125	XK2130	XK2135	XK2140	XK2145	XK2150
Table width	mm	2000	2500	3000	3500	4000	4500	5000
Table length	mm	4000~12000			8000~14000		10000~18000
Loading capacity per unit length of table	t/m	10			20		30
Distance between column covers	mm	2400	2900	3400	3900	4400	5000	5500
Max. distance from spindle end to table	mm	2500/3000/3500			3500/4000		4500/5000
Max. rated power of spindle	KW	58/85			85/110		110
Table travel -X axis	mm	Table plane length + 500
Boring and milling head horizontal travel - Y axis	mm	3400	3900	4400	4900	5400	6000	6500
Ram vertical travel - Z axis	mm	1000/1250/1500			1500/2000		1500/2000
Crossrail vertical travel - W axis	mm	Max. distance from RAM spindle end face to table -(500~1000)
