High Quality Customizable Computer Edge Ai Systems with USB Interface and HDMI
Basic Info.
Model NO.
FC2101S-8GB
Certification
CE, ISO
Condition
New
Specification

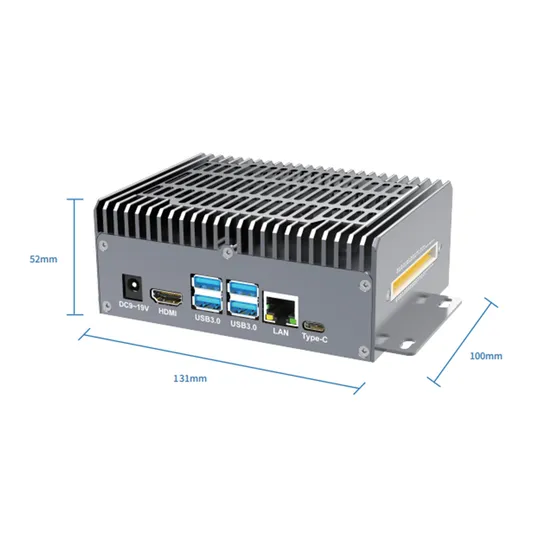

131mm x 100mm x 52mm
Trademark
Neutral Packing
Origin
Zhejiang, China
Production Capacity
in Stock
Product Description
High Quality Customizable Computer Edge Ai Systems With USB Interface And HDMIProduct Parameters
| Technical Parameter | ||
| System | AI platform | Jetson Orin Nano |
| AI computing power | Super mode:67TOPS | |
| GPU | 512-core NVlDlAAmpere architecture GPU with 16 Tensor Cores | |
| CPU | 6-core Arm® Cortex®-A78AE v8.2 64-bitCPU 1.5MB L2+ 4MB L3 | |
| Video encoding | 1080p30 supported by 1-2 CPU cores | |
| Video decoding | 1x4K60 (H.265)2x 4K30 (H.265) 5x 1080p60 (H.265)11x 1080p30 (H.265) | |
| memory | 4GB 64-bit LPDDR5 34 GB/S | |
| Storage/Expansion | (Supports extemal NVMe) | |
| Hardware interface | ||
| Wired network | interface | 1xRJ45 Gigabit Ethernet port |
| wireless network | WIFI | 2.4GHz/5GHz dual-band WiFi (optional) |
| 5G/4G | / | |
| GNSS | / | |
| other | / | |
| multimedia | display | 1x HDMI |
| audio | / | |
| I/O | USB | 4x USB3.2 Type-A, 1x USB3.2 Type-C |
| Serial | 1x UART( TTL) | |
| CAN | / | |
| Multi-function interface | 40 pin (UART, SPI, 12S, 12C, PWM, GPIO) 12 pin control signal interface, 4 pin fan connector | |
| interface | M.2 KEY E | WFI |
| M.2 KEY M | 1x2280 PCIE SSD | |
| others | RTC | / |
| Sync the system | / | |
| GMSL camera interface | 2x22-Pin 4-Lane CSl connector | |
| Miscellaneous | Power input | 9-19v |
| Power interface | DC | |
| Buttons/indicators | / | |
| Physical parameters | Dimensions | 131mm x 100mm x 52mm |
| Environment | Working temp. | 20°C-60°C |
| Humidity | 5%~95%,No condensation | |
| Heat dissipation | Fan cooling | |
FAQ 1. Are you factory or trading company?
We are factory with over 20 R & D engineers, our price is very competitive, after-sales service is guaranteed.
2. Do you provide OEM/ODM service?
Yes, OEM/ODM service is available.
3. What payment method do you accept?
T/T, Paypal, L/C, etc.
4. What is your lead time?
1 day for edge computing development kit, 3 days for edge computing box, 30 days for customization service.
5. What is the warranty?
2 years. We have a professional team dealing with after-sales issues.
