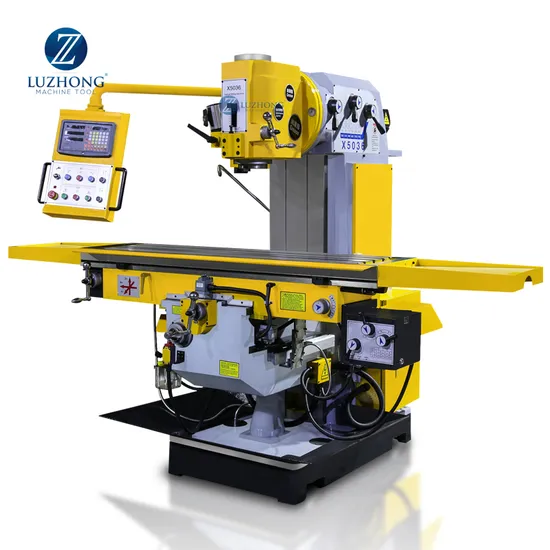

Metalworking milling machine X5036B X5036B-1 vertical milling machine

Product Description

Metalworking milling machine X5036B X5036B-1 vertical milling machine Product Description
Detailed Photos
Product Parameters
The main performance characteristics:
1. The use of the moment type of rail steel is good, strong stability
2. High frequency quenching of working table and guide surface
3. Working table Y, X are both gear drive automatic feed, Z for electric lift
4. X5036B - type slider (1200mm) to make the work of the working table longer, better stability
5. B type milling head with automatic feed device can be customized according to user requirements of the X direction of the work table 1300mm
Product main technical specifications:

Specifications	Units	X5036B	X5036B-1	X5036K
Table size	mm	1500×360	1500×360	1500×360
Table travel	mm	800/320/450	1000/320/450	1000/320/450
T slot(number-width-pitch)	mm	3-18-80	3-18-80	3-18-80
Spindle taper		ISO50 7:24	ISO50 7:24	ISO50 7:24
Spindle speed range	rpm	60-1700(12steps)	60-1700(12steps)	60-1800(12steps)
Distance between spindle nose and table surface	mm	60-540	60-540	60-540
Distance between spindle axis to column surface	mm	360	360	360
Main motor power	kw	4	4	5.5
Weight	kg	2700	2700	3300
Overall dimension	mm	2600×2200×2220	2600×2200×2220	2700×2300×2400

Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
