High Quality Automatic Elevator Outdoor Lifting Platform Truck
| US$2,000.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Lift Mechanism
Scissor Lift
Carrying Capacity
Weight Level
Moves
Moving
Driven Type
Hydraulic
Running Mode
Moving
Feature
Explosion-Proof
Power Source with
24V DC or 48V
Travel Speed(Raised)
0.5km/H
Table Size
2270*1120mm
Battery
6V/230ah
Lift Drive / Actuation
Electric Motor
Load Capacity
320kg-450kg
Working Height
6-12m
Platform Size
2270*1120mm
Extend Platform
900mm
Weight
1460kg-3600kg
Overall Size
2480*1390*(2200-2635)mm
Transport Package
Wooden Box or Container
Trademark
YU YING
Origin
Hebei, China
Production Capacity
8000 Piece/Pieces Per Month
Product Description
Product Description
Advantage:
1. Lifting height from 6m to 16m 2.Electric model,Wheel or track model.
| Model | DX06LD | DX08LD | DX10LD | DX12LD |
| Capacity | 450kg | 450kg | 320kg | 320kg |
| Capacity of Extendable Platform | 113kg | 113kg | 113kg | 113kg |
| Max Platform Height | 6m | 8m | 9.75m | 11.75m |
| Max Working Height | 8m | 10m | 12m | 14m |
| Overall Length | 2470mm | 2470mm | 2470mm | 2470mm |
| Overall Width | 1390mm | 1390mm | 1390mm | 1390mm |
| Overall Height(guard rail open) | 1745mm | 2400mm | 2530mm | 2670mm |
| Platform Size | 2270*1120mm | 2270*1120mm | 2270*1120mm | 2270*1120mm |
| Extendable Platform Length | 900mm | 900mm | 900mm | 900mm |
| Min Turning Radius | 0 | 0m | 0m | 0m |
| Gorund Clearance | 150mm | 150mm | 150mm | 150mm |
| Lifting Motor | 48v/4kw | 48v/4kw | 48v/4kw | 48v/4kw |
| Travel Motor | 2*48v/4kw | 2*48v/4kw | 2*48v/4kw | 2*48v/4kw |
| Drive Speed | 2.4km/h | 2.4km/h | 2.4km/h | 2.4km/h |
| Lifting Speed | 5s/m | 5s/m | 5s/m | 5s/m |
| Battery Charger | 48v/25A | 48v/25A | 48v/25A | 48v/25A |
| Net Weight | 2400kg | 2550kg | 2840kg | 3000kg |

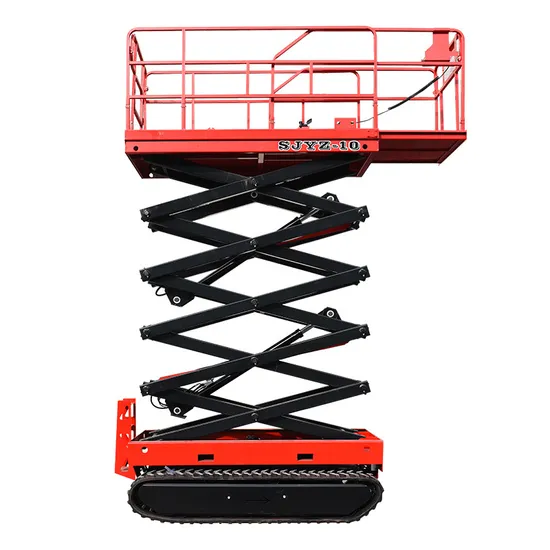

China Daxlifter Rough Terrain Crawler Scissor Lift special design for bad working place, the crawler design will offer a good help for the lift to across some rough obstacle.For example, grassland, some rough construction ground etc.. Crawler Type Scissor Lift adopts a crawler design to ensure a good possibility of the scissor lift. If you want to find a good quality manufacturer, please send an inquiry to us. We will provide you with a suitable price
