Customized Coarse Ground Coffee Premixing Rotation Bin Mixer

Product Description

Customized coarse Ground Coffee Premixing Rotation Bin Mixer
Main Technical Data:

Model no.	Effective Volume(L)	Loading coefficient	Power(KW)	Rotation speed(r/min)	Dimension (mm)	Weight(kg)
TLB-5	5	80%	0.4	3-25	1280X820X1300	50
TLB-10	10	80%	0.4	3-25	1280X840X1300	65
TLB-20	20	80%	0.4	3-25	1280X850X1300	80
TLB-25	25	80%	0.75	3-20	1450X1020X1350	90
TLB-50	50	80%	0.75	3-20	1480X1040X1350	105
TLB-100	100	80%	0.75	3-20	1500X1050X1350	135
Pls feel free to contact us if you need more technical parameters!

FAQ:
1. Manufacturer or trading company : Manufacturer
2. Location : Songjiang district , Shanghai
3. Selling markets: Europe, American, Australia, Asia, Africa
4. Customized: Available for customized designs
5. Delivery time: 15 - 30days
6. Warranty period: 1 year
Product Description:

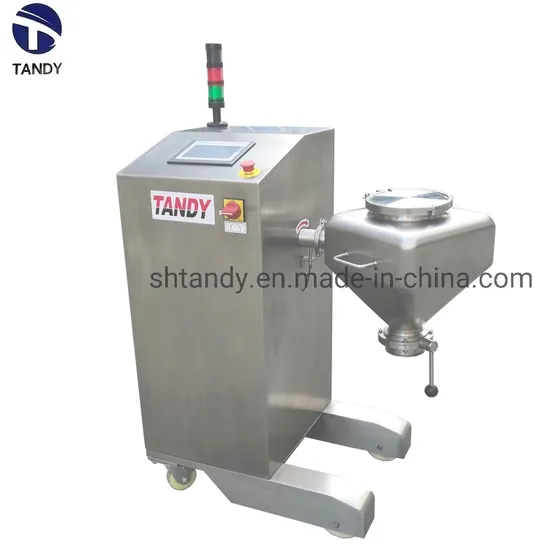

The lab bin blender is installed on a moveable bases. It is main part including machine frame, rotation system, electric control system , hopper etc.. The conical mixing hopper is mainly composed of hopper , hopper cover, ferrule, butterfly valve etc. Main Features:
1. The mixing hopper and main machine adopt quick disassembled type connection with convenient installation and disassembly.
2. It can be equipped with different mixing hoppers to match requirement for laboratory tests without the necessary of frequent material transferring, material discharging etc.
3. It adopts PLC automatic control to carry out automatic mixing and positioning with user-friendly control and operation.
4. The machine is free from any dead corner of sanitation, the exposed parts are made of high quality austentic stainless steel , fully meeting the requirements for machine production in GMP.
