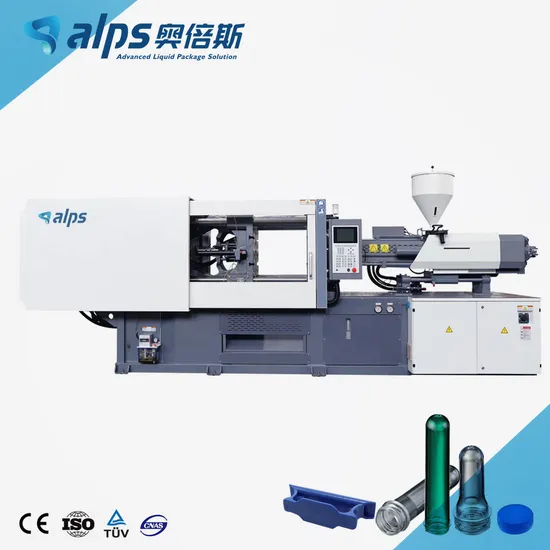

Good Quality Pet Prform Injection Machine / Plastic Moulding Machine

Product Description

Good Quality Pet Prform Injection Machine / Plastic Moulding Machine *We supplied clamping force ranges from 98ton to 3400ton injection molding machine. besides, we also have special machine for PVC, PET, Variable Pump, clear double color, servo-motor machine,high speed injection machine.
Technical Parameter:

Technical Parameter :Injection Molding Machine
Model	Clamping Force	Shot weight A/B		Heat power	Pump power	Oil tank capacity	Dimensional	Weight
BST-1000A	1000KN	128g	162g	7.6KW	11KW	180L	4.3*1.5*1.6M	3.4t
BST-1320A	1320KN	188g	205g	8.2KW	13KW	200L	4.5*1.6*1.7M	3.9t
BST-1400A	1400KN	230g	252g	8.2KW	13KW	220L	4.8*1.6*1.7M	4.2t
BST-1650A	1650KN	286g	326g	8.2KW	15KW	250L	5.0*1.6*1.7M	5t
BST-1800A	1800KN	335g	378g	11KW	15KW	250L	5.3*1.6*1.8M	5.5t
BST-2050A	2050KN	415g	472g	11.6KW	17KW	270L	5.4*1.6*1.8M	6t
BST-2300A	2300KN	546g	592g	11.6KW	18.5KW	300L	5.7*1.8*2.0	6.5t
BST-2600A	2600KN	650g	690g	15.5KW	25KW	350L	6.1*1.7*1.8	8t
BST-3000A	3000KN	709g	760g	15.5KW	25KW	370L	6.5*1.8*1.8	9t
BST-3400A	3400KN	772g	826g	17.5KW	30KW	400L	6.7*2.0*1.9	10.8t
BST-3850A	3850KN	1008g	1072g	17.5KW	30KW	400L	7.0*2.2*2.0	11.8t
BST-4500A	4500KN	1430g	1512g	20.5KW	37KW	450L	7.3*2.3*2.4	13.8t
BST-4800A	4800KN	1590g	1670g	23.4KW	40KW	600L	8.3*2.2*2.2	16.2t
BST-5200A	5200KN	1980g	2130g	28.1KW	43.5KW	750L	8.6*2.2*2.3	20t
BST-5800A	5800KN	2230g	2430g	28.1KW	48.5KW	850L	8.75*2.2*2.3	21.8t
BST-6500A	6500KN	2745g	2870g	37.1KW	55KW	1000L	9.2*2.2*2.4	26t
BST-7500A	7500KN	3810g	3960g	40.9KW	67KW	1200L	10.7*2.3*2.7	38t
BST-8500A	8500KN	4200g	4350g	42.5KW	74KW	1300L	11*2.4*2.8	45t

Introduction :
High Efficiency Energy Saving Injection Molding Machine adopts proportional pressure and flow control, the pressure and the speed can be adjusted, stable movement curve and gentle shock, the computer is imported from Industry family.The LCD displaying screen with high clarity has Chinese and English language to use.Close-loop PID temperature control with the advantage of high precision.The operating table of the injection moulding machine have two safety, one is machine safety, another is electrical safety, that ensures the operators's safety.
Details Photos :

	Clamping Unit5-point twin toggle clamping system by modular optimization software designing.Strong clamping with rapid and stable, tomeet the strict clamping condition. Mould height adjustment by hydraulic driven gear system with rapid and stable. Automatic mould height adjustment as per the setting clamping force(optional).
Injection UnitBaIanced double injection cylinder technology makes screw to have evenly distributed force during fast injection, Five_star Hydraulic motor with big torque, Ensure the excellent plastic molding condition. Research and develop different screws according to difierent iniection condition, suitable for the progressive demand and greatly improve the injection quality.
	Control UnitImported computer special for Injection Molding Machine with multiple functions and precise control processing. World famous electrical components and high quality circuit hardware with stable and reliable running.

Application :
Injection Molding Machine can have a molding complex, the size is accurate or plastic with metal insert of the fine and close texture, are widely used in national defense, electrical, automotive, transportation, building materials, packaging, agriculture, Medical, Household, Appliance sectors and People's Daily life. Today with the rapid development of plastic industry, injection molding machine no matter in quantity or variety occupies an important position.
Compnay introduction :
Alps Machine Co.,Ltd is ...
*Standardized workshop of total 12,000 square meters.
Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.
*International certification, National Certificate of equipment verification, and more than 30 invention patents
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.
*The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechanical stability.
*Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.
*The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers' requirements to save space.
*Professional installation team who can speak fluent English can help customers make benefits in a shortest time.
Certification:
Our compnay complies with ISO9001:2000 Internation quality management system,also carries out the modern enterprises management systme ,to executes quality control during the processes of producing ,wins customer' recognition by the high quality products and services.
