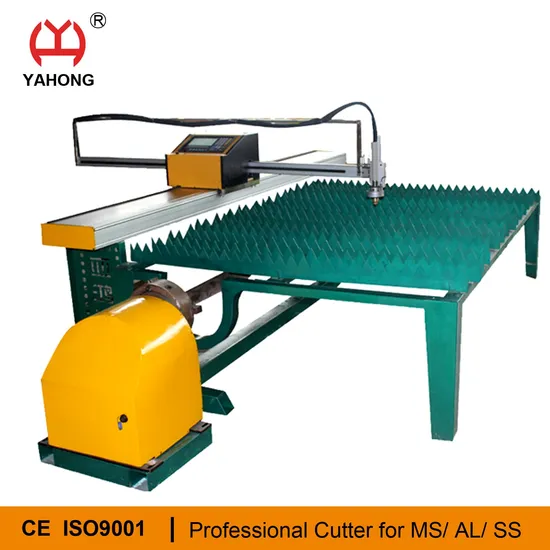

Portable CNC Pipe Plate Plasma Cutter with Plasma and Flame Cut for Sheet Metal and Tube

Product Description

Portable CNC Pipe Plate Plasma Cutter with Plasma and Flame Cut for sheet metal and tube

I.Advantages of cnc plasma cutter:
1. 1. The portable pipe plate cutting machine is small and light. It can cut both flat plates and round pipes to realize multi-purpose.
2. Install the plasma automatic height controller. During the machine cutting process, the cutting torch can automatically rise and fall according to the unevenness of the steel plate to prevent the cutting torch from crashing, extend the life of the cutting torch, and save costs.
3. The control system has a graphic display function, which can observe the cutting process in real time. And supports 9 languages, it is easier to use your own native language to operate. With power-off memory function, you can continue cutting after the power-on, saving time for cutting from the beginning. There are 48 kinds of graphics, regular graphics can be directly used, change the size, set the quantity, save the computer drawing time and improve efficiency.
4. Using well-known brand stepper motor driver, stable operation and low noise.
5. Equipped with fully automatic nesting software, which saves time for typesetting and improves the utilization rate of steel plates.
6. Optional: remote control, the control distance is 30 meters, the operation is more convenient.
7. Optional: Plasma anti-collision holder, when the torch hits the steel plate, it will automatically stop to prevent the torch from crashing and save costs.
8. Optional: flame automatic igniter, to avoid burning hands when using a lighter to ignite, and to ensure safety.
9.It can be equipped with various power plasma power sources, such as 100A, 130A, 200A, etc, to achieve plasma cutting. The plasma cutting speed is 3-5 times that of flame cutting, which improves production efficiency.

II.Parameters of plasma cutter:

1	Cutting Shape			Steel plate with any plane shapes fromed by straight lines and arcs.
2	LCD Display Dimension			7"Inches
3	Effective Cutting Size			1500*3000mm
4	Flame Cutting Thickness			5-200mm
5	Plasma Cutting Thickness			0.5-25mm (according to plasma power)
6	Pipe Diameter			50-250mm or 300mm
7	Pipe Length			3000mm or longer
8	Height Control			Electric Height Control+Arc Voltage Height Control(THC)
9	Motor and driver			Stepper motor and driver
10	Cutting Speed			0-4000mm per minute
11	Drive Mode			Single driver
12	Cutting Mode			Plasma and flame cutting
13	lifter			one lifter for plasma and flame
14	Ignition Device			Auto
15	File Transmission			USB
16	Cutting Gas			Flame: Oxygen+ Acetylene/ Propane/ Coal gas Plasma :air
17	Gas Pressure			Max. 0.1 Mpa
18	Oxygen Pressure			Max. 0.7 Mpa
19	Cutting Accuracy			±0.5mm
20	Software			Professional Nesting Software(support Auto CAD/ Solidworks/ CAXA/ Types etc.)
21	Power Supply Voltage/Frequency			220V/110V 50HZ 60HZ
22	Rated Power Supply			1500W
23	Working Temperature			-10ºC-60ºC. Relative Humidity from 0-95%

Pipe Nesting Software:
1 End cut
2 End Slotting
3 Opening
4 Cut-flower(can cut all kinds of graphics)
5 The main pipe generates the branch pipe and opens the intersecting line hole
6 The main pipe generates the taper pipe opens the intersecting line hole
7 Intersecting line end cut for connection of the main pipe and branch pipe
8 Three pipes joint
9 One branch pipe and the main pipe and another branch pipe combination for intersection
10 Pipe welding elbow, "Small Shrimp Festival" oblique section cutting;
IV.Cutting Samples:
V.Hot Sale Plasma Power Model and Quality Cutting Thickness
According your cutting thickness ,please choose suitable plasma model for you.

VI.Why Choose US?
1. More than 10 years of production experience to ensure product quality and timely delivery.
2. The perfect after-sales service team can solve all kinds of problems in time. You can communicate via email, phone, whatsapp, skype, wechat, etc.
3. We are a manufacturer, have enough spare parts and consumables, and deliver them in time to solve your worries.
4.Provide OEM/ODM Service.

VII.Certificates
