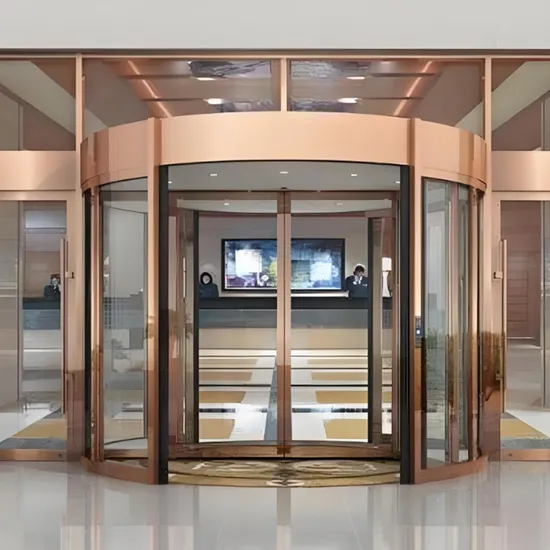

Two Wings Automatic Revolving Door for Commercial Building Entrance Glass Revolving Door

Product Description

Two Wings Automatic Revolving Door for Commercial Building Entrance Glass Revolving Door Product Description The two wing revolving door is a perfect combination of a revolving door and a sliding door. Superior performance, complete functionality, and beautiful appearance. The control system adopts internationally advanced PLC programmable control and first-class AC frequency conversion technology, key electrical components and high-strength aluminum alloy structure to ensure the high quality and performance of the product, effectively combining international advanced technology and excellent craftsmanship, and highly integrating with modern fashion. It can be regarded as a classic work of modern gatehouses.
The fully automatic operation mode can be selected with or without an exhibition box.
Provide surface decorations in various materials and colors: fluorocarbon spray coating, stainless steel plate, copper plate decoration, etc

Model	Inside diameter	Outside diameter	Inlet width	Full height of the door	Normal traffic volume (person/minute)
CY-2-32	3060	3200	1580	2200~3000	32 people
CY-2-34	3260	3400	1680	2200~3000	40 people
CY-2-36	3460	3600	1580	2200~3000	48 people
CY-2-38	3660	3800	1680	2200~3000	56 people
CY-2-40	3860	4000	1780	2200~3000	64 people
CY-2-42	4060	4200	1880	2200~3000	80 people
CY-2-44	4260	4400	1980	2200~3000	88 people
CY-2-48	4660	4800	2080	2200~3000	96 people

Product Parameters Technical parameters:
Rated voltage: 50Hz, 110V~220V
Rated current: 5A
Rated total power: 610-890W
Motor power: 500-740W
Automatic smoothing gate power: 60-100W
Lighting power: 42W
Turnstile speed: 3-4 cycles/minute
