Hospital Under Pad Making Machine Semi Servo
| US$510,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
JWC-CFD250
Product Object
Adult
Designed Speed
150-400pcs/min
Production Speed
150-400pcs/min
Computer Control Panel
Computer Control Panel
Product Specification
Medium
Automatic Grade
Full Automatic
Certification
CE
Condition
New
Color
Silver and Yellow
Process
Paper Machine
Usage
Under Pad Machine
Computerized
Yes
Transport Package
Wooden Box or Other
Specification
ISO9001 CE
Trademark
JWC
Origin
China
HS Code
84418090
Production Capacity
30 Set/Year
Product Description
| Semi Servo under pads making machine(3 layers) JWC-CFD250
Main technical Parameters
Machine Standard Configuration: Reasonably solid square steel frame: Crusher system: Fluff core forming system SAP feeding system Top sheet hydrophilic non-woven feeding, roll diameter φ800mm Back sheet PE film feeding, roll diameter φ600mm 2 sides release paper feeding, roll diameter φ450mm(optional ) Release paper glued on the bottom film (optional ) Y-shape roller Finished product horizontal folding unit Final cut unit Product vertical 2-folding or 3-folding, frequency control Blow type auto rejection exit Output wheel, the output platform is 2.5meters. Conveying and driving system Adopt servo motors +frequency convertor +three-axis for transmission controlling, main raw materials unwinding driven by frequency control, to guarantee the precision and stability of the machine in high speed, and can realize not change any transmission parts to change the product's size, can directly set on PLC, easy to operate and maintain Air supply Vacuum, drum former, dust and wastage collection during production process adopt with several sets air pump and positive pressure blower Air supply is set on the top of machine, made by steel tube, reduce the static electricity, high pressure blower unified air supply, pressure can be adjusted Air tube is set on the top of machine, unified conveyed by galvanized pipe/PVC pipe, connect necessary distributing pipe at the nearest place, neatly arrangement Raw Materials List

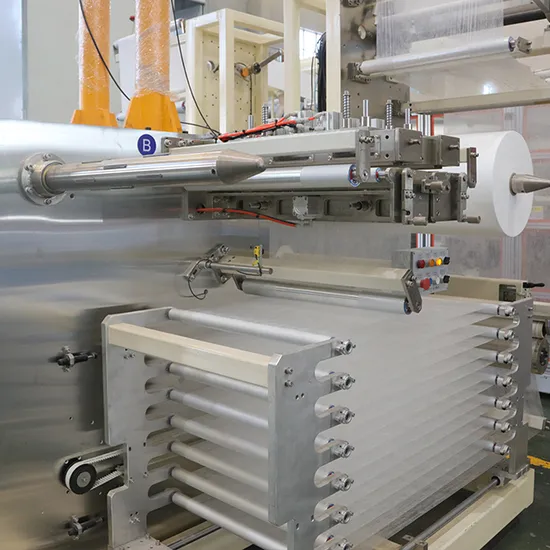

Machine picture (for reference) |
Main technical Parameters
| 1 | Design speed | 300meters/min |
| 2 | Stable running speed | 280 meters/min (3 layers ,treated pulp, fluff GSM 40-80/M2) |
| 3 | Qualified rate | ≥ 98% (exclude the wastage due to the glue applicators and materials splicing joint) |
| 4 | Efficiency | ≥ 85% |
| 5 | Installation capacity | Main machine: 320KW. 360KW including the glue machine |
| 6 | Electricity | Three phases four wires 380V/50Hz (ground wire) |
| 7 | Wire | 3×95MM2+1×25MM2+1×16MM2 |
| 8 | Lowest pressure | ≥0.6mpa , 2.6m3/min |
| 9 | Total weight | 70 tons |
| 12 | Machine size | 26×8×5 M(L×W×H) |
| 13 | Working space | 29×10×6 M(L×W×H) |
| 14 | Products | Three layer products :inside fluff core discontinuous forming |
| 15 | Machine color | RAL1013, or other color to be customized |
| 16 | Product size | 3 layers pads: Width: 450-600mm to be customized, length is 450-1500mm to be customized |
1.Reasonably solid square steel frame:
2.Crusher system (double entrance):
3.Fluff core forming system (3 layers under pads)
4.SAP feeding system
5.Back sheet PE film feeding, roll diameter φ600mm
6.Top sheet hydrophilic non-woven feeding, roll diameter φ800mm Fluff core flat compact roller sides release paper feeding, roll diameter φ450mm (optional ) 9.Release paper glued on the bottom film (optional ) Y-shape roller Finished product horizontal folding unit Final cut unit Product vertical 2-folding or 3-folding,servo control Blow type auto rejection exit Output wheel, the output platform is 2.5meters. Conveying and driving system Air supply
