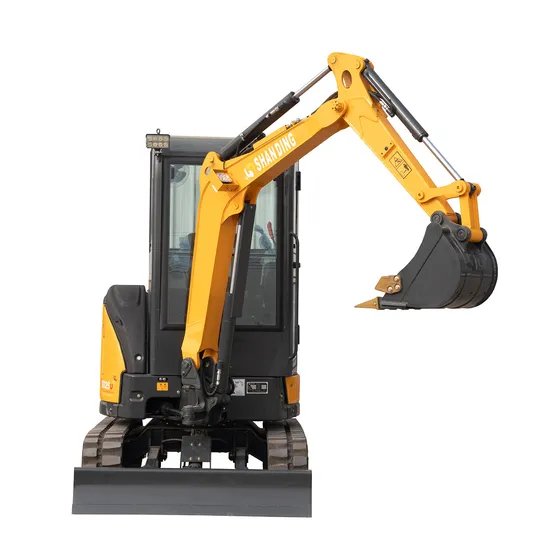

Mini Excavator Digger Excavator Machine Mini Earth-Moving Machinery Excavators
Basic Info.
Model NO.
SD25U
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Shovel
Transmission
Hydraulic Transmission
Drive Type
Electric Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000, Eac
Condition
New
Engine
Perkins
Power
14.7kw
Transport Package
Wooden Box
Specification
4*1.65*2.1
Trademark
Shanding
Origin
Shandong
HS Code
8429521200
Production Capacity
5000 Sets/Year
Product Description
| Machine parameters | |
| Model | SD25U |
| Operating Weight | 2.5 ton |
| Bucket Capacity | 0.1m³ |
| Rated Power | 14.7 kw , 15.2kw |
| Max.Hydraulic System Pressure | 18mpa |
| Ground Pressure | 35kpa |
| Max. Grade ability | 30° |
| Max Walking Speed | 2.8-4.1km/h |
| Max Digging Force | 16kn |
| Platform Rotary Speed | 14 r/min |
| Boom swing function | yes |
| Dimensions | |
| Overall Length | 3950mm |
| Overall Width | 1300mm |
| Overall Height | 2300mm |
| Arm Length | 950mm |
| Boom Length | 1950mm |
| Track Length | 1870mm |
| Track Width | 250mm |
| Platform Width | 1330mm |
| Platform Ground Clearance | 480mm |
| Bucket Width | 450mm |
| Working range | |
| Max. Digging Height | 4300mm |
| Max Digging Depth | 2550mm |
| Max. Digging Radius | 4150mm |
| Max Dumping Height | 2530mm |
| Radius of Gyration | 1800mm |
| Max. Sinking Depth of Bulldozer | 300mm |
| Max. Lifting Depth of Bulldozer | 330mm |
| Machine configure | |
| Engine Model | Perkins , Yanmar |
| Main valve | Taifeng |
| Main Pump | Taifeng (Plunger pump) |
| Rotation Motor | Eaton |
| Walking Motor | Eaton |
