2.6cbm Capacity Professional Concrete Mixer Self Loading Concrete Truck Mixer in Coimbatore

Product Description

Product Description
SQMG JF Self Loading Concrete Mixer Truck is a kind of unique vehicle which combines concrete mixer, transit mixer and wheel loader.

0.8m³ Longer transportation distance, no longer only supporting short distance transportation,
better improving work efficiency.

Model	JF-0.8	Geometric capacity of mixing drum	1450L
Overall dimensions (length * width * height)	3389 * 2876 * 2295	Concrete production	0.8 cubic meters per batch
Curb weight (kg)	3620	Oil	12L
Drive form	Torque converter drive	Tank	56L
Maximum speed (km/h)	30	Maximum climbing slope	30

2 m³ We support customized mixing trucks with various quantities, and they will provide you with absolute advantages in terms of quality and price, making your application more
extensive.

Model	JF-2.0	Drive type	Torque converter
Overall dimensions (length * width * height)	6950*2720*3850	Working weight	6300 kg
Geometric drum volume	3500L 3.5m³	Fuel tank:	75l
Drum speed	18-21 rpm	Emission standard	Euro 2
Maximum speed (km/h)	35	Maximum climbing slope	40

3.5m³ lt adopts a self-loading design, which can realize automatic loading, weighing, mixing, and discharging. It can rotate the material for unloading. The tank and cab can realize
synchronous steering, making on-site construction very convenient.

Model	JF-3.5	Drum&Cab 270°Slewing	270 °
Mixed volume	3.5m3	Maximum driving speed	30 km/h
Geometric volume	4740L	Gradient	40% full load
Concrete output	3.5 m3/batch, 14 m3/hour	Working weight	8300 kg
Drum speed	18-21 rpm	Fuel tank:	120L

6.5m³ SQMG JF concrete mixer truck provides you with 24-hour professional after-sales service. No matter what problems you encounter, please contact us to solve them for you.

Model	JF-6.5	Drum rotation angle	290 °
Mixed volume	6.5m3	Overall dimensions (length × wide × high)	8450 * 3050 * 4830
Geometric volume	9000L	Maximum driving speed	40.0 km/h
Concrete output	6.5 m3/batch, 26 m3/hour	Gradient	40% full load
Drum speed	16.5 rpm	Fuel tank:	370l

Detailed Photos
LOADIHG BUCKET --Easy loading of materials into the mixing drum --Bucket vibrator for better discharge --Use hydraulic cylinder to control opening and closing of gateWATER SYSTEM --Quantitative self-priming pump,plus quantitative controller,realizes automatic quantitative water intake. --Double water supply system,can add water from external water source,or water in the water tank.
ROP&FORPS TYPE CAB
--Sound insulation,high safety --Tilt front window --Height adjustable anatomical seat --Anatomic seat with flexible suspension --Air conditioner is upon request
EXQUISITE CRAFTSMANSHIP DETAILS --Quality can withstand amplification
--Fully sealing cyclotron support,100% avoid dust;with at least 6 grers to contact each other.THE CAB CAN BE TURNED SYNCHRONOUSLY OR CAN BE ROTATED
It helps drivers to observe the position of the discharge port more accurately and control the discharge amount, improving the accuracy and controllability of discharge.
Reducing driving fatigue and reducing the bearing strength of the bottom turntable is beneficial for the long-term operation of the turntable.

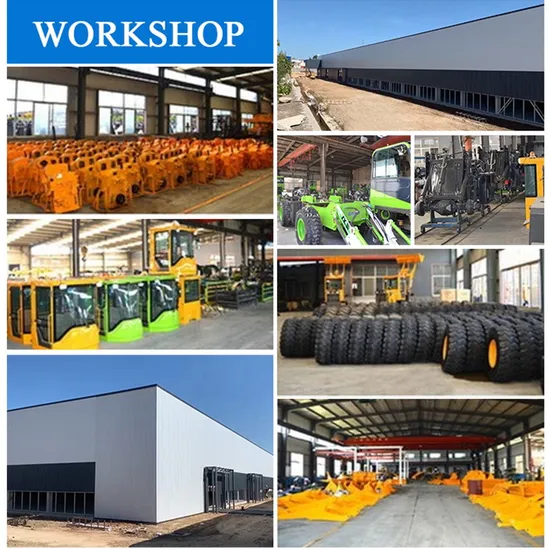

Company Profile
Shandong Shanqi Construction Machinery (Group) Co.,Ltd. was born out of Laizhou Jufeng Co., Ltd., which was founded in 1992 and has formed an industrial structure of "One Body Two Wings". It is a leading manufacturer of professional construction machinery equipment with a history of nearly 30 years, and is also a national heavy equipment manufacturing enterprise supported by the Chinese government. Our company is a group enterprise covering an area of more than 200,000 square meters, with more than 600 employees and 5 production plants. The main products we manufacture include self-loading concrete mixer trucks with output capacity from 0.6 cubic meters to 6.5 cubic meters, wheel loaders with payloads from 1 ton to 5 tons, backhoe loaders, rough terrain forklifts, crawler excavators, concrete Mixing pump etc.
The company has passed ISO9001, ISO45001, ISO14001 and other certifications, most of the products have relevant patent certificates, and related products have also passed CE certification. We continuously improve and update our products according to customer feedback and market demand. At every stage of the manufacturing process, each component passes rigorous testing before the assembled machine passes final preshipment inspection. So far, we have more than 200 distributor agents, 150 service provider agents and 10 spare parts warehouse centers in China, and have established a relatively complete after-sales service system. Our products have been exported to more than 30 countries and regions such as Europe, America, Southeast Asia, Central Asia, Middle East, Africa and Oceania. High-quality products, sufficient supply of spare parts, fast and efficient after-sales service and reasonable prices have enabled us to win the trust and good reputation of customers in domestic and foreign markets, and forged the "ZKJF" brand. In accordance with the development strategy of "taking the road of famous brand and building a century-old ZKJF", the company strives to move towards the grand goal of becoming a first-class enterprise in mainland China and a world-renowned construction machinery manufacturer.
Packaging & Shipping
PACKING AND SHIPPING USUALLY BY SEA Container: The cheapest and fastest to place the machinery in container, which needs to be disassembled. Flat frame: usually used to delivery machinery, with a maximum carrying capacity of 35 tons. Bulk Carrier: More suitable for large construction equipment without dismantling. Ro-Ro : The boat is driven directly onto the ship, no disassembly is required.
FAQ
Q: Are you the original manufacturer?
Answer: Yes, ZKJF was established in 1992 and is a national heavy equipment manufacturing enterprise mainly supported by the Chinese government.
Q: How is the quality of your products?
Answer: Our company has passed ISO9001, ISO45001, ISO14001 and other certifications. Most of our products have patent certificates, and related products have also passed CE certification. All the machines are carefully and strictly inspected and maintained by our skilled workers according to Chinese national standards as well as international standards, before shipping we will check the equipment again until it runs well before delivery. So as to ensure that every machine we deliver to customers has good performance and high quality.
Q: Will the price be higher than that of low-end products in the industry?
Answer: We are the leading manufacturing factory in China, and many big brand owners also carry out OEM production in our company. The production scale has reached a certain level. Although our products are of higher quality, the price is still very favorable.
Q: Do you provide after-sales service?
Answer: Yes. We provide a 12-month warranty, and our company is responsible for product quality problems caused by quality during this period. That is, if quality problems occur within 12 months after purchase, our company will provide free spare parts and promise to provide technical services. Our company has a professional after-sales service team, after-sales engineers provide installation and commissioning training, and solve all your worries systematically, thoroughly and quickly.
Q: How about your product spare parts service?
A: We are committed to providing our customers with high quality product spare parts service, precise fit and fast delivery and service. If spare parts are damaged due to product quality problems during the warranty period, we provide free spare parts.
Q: What about problems in daily use?
Our customer maintenance department and after-sales service engineers provide online consultation at any time.
