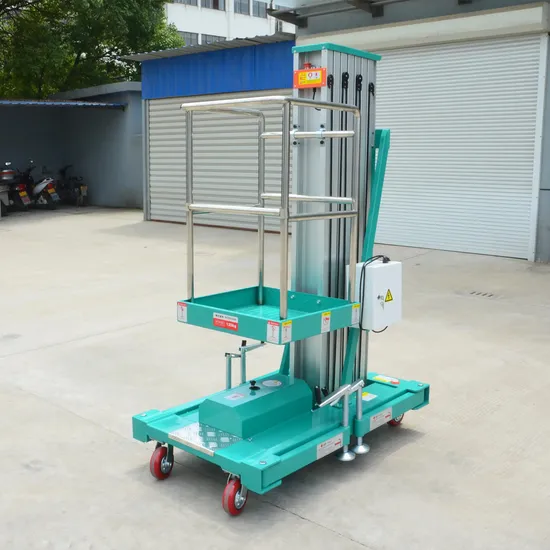

Small Aluminium Post Work Lift Hydraulic Platform

Product Description

Product Description
Aluminium Single Mast Lift Table is a small and light work lift table,safe and reliable, it is mainly used for the installation and maintenance of many fields, such as hotels, workshops, lobby, restaurant, railway stations, exhibition hall, shopping malls, and so on, which is a good helper for the equipment maintenance,paint decoration,etc.
Detailed Photos

Product Parameters

Model	Capacity	Table size	Table height	Work height	Dimension	Weight
YBC0.1-4	100Kg	650*650mm	4m	5.7m	1.2*0.8*1.7m	300Kg
YBC0.1-6	100Kg	650*650mm	6m	7.7m	1.2*0.85*1.87m	350Kg
YBC0.1-8	100Kg	650*650mm	8m	9.7m	1.2*0.9*1.98m	400Kg
YBC0.1-10	100Kg	650*650mm	10m	11.7m	1.2*0.9*1.98m	450Kg

Main Features
★ Adopting high strength aluminum molding material keeps deflecting degree and swing tiny.
★ Overload & emergency safety protection device.
★ Safeguard valve to avoid hydraulic pipe rupture.
★ Emergency manual hydraulic valve to cope with power cut.
★ Double chains greatly improve the safety factor.
★ Electrical control, or manual pump control when the electricity is not available.
★ Power 220v/380v, 50hz/60hz; battery driving optional.
Workshop Show
-
FAQ
1, How many types of the aluminum lift table?--- Two types: single mast and dual-mast types;2,What is the lead time normally?-- About 10-15days after getting the deposit money from client;3,What is the payment terms?-- T/T. 50% deposit in advance and 50% balance before shipment;4,How about the shipment method?
-- Normally, the packing way is by plywood case, and do LCL shipment.5, How about your quality control?--We have engaged in the tractor field for many years, now we have our own brand and have passed the EU CE certification, the quality is ensured.6, How about your warranty and after-sale service?---The warranty is 1 year, if any part broken within one year, we will send the parts to client by express.If there is question about the operation or using, we will give technical support to guide client to do well.
