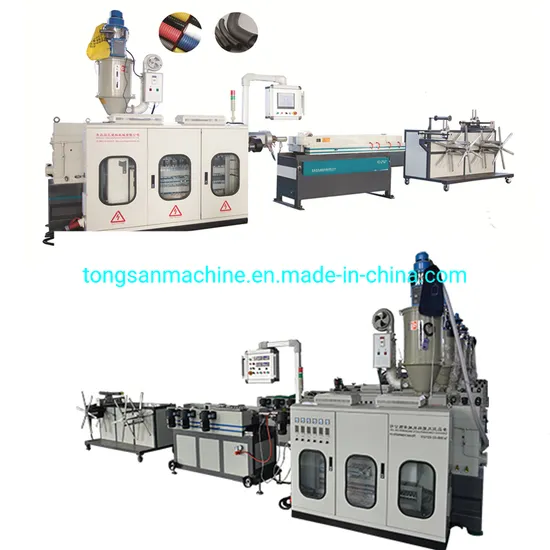

PP PE PVC Corrugated Pipe Machine Production Line/ Bellows Water Electric Conduit Pipe Making Machine

Product Description

Professional machine manufactuer Plastic corrugated pipe machine
Bellows Water Electric Conduit Pipe Making Machine/PP PE PVC Corrugated Pipe Machine Production Line
PE/HDPE Plastics Corrugated Pipe Machine developed by our company adopts gears to run modules and templates so as to realize water circulating cooling and air cooling of the products, which ensures high-speed molding, even corrugation, smooth inner and outer pipe wall. These corrugated pipes are especially used in wires conduit pipe.It is mainly for the production of raw materials to PVC.PP.PE small diameter single wall corrugated pipe. Die by the corresponding forming a homogeneous single-wallcorrugated bellows products. Threading pipe for wire and cable, washing machinedrains, vacuum cleaners, ventilation pipe, prestressed concrete special tubes. The Corrugated Pipe Machine Application
1. The PVC/PE single wall corrugated pipe machine can be used to produce small diameter PVC, PP and PE single wall corrugated pipes.
2. Corrugated pipes with smooth inside and outside surfaces, and even ripple are extruded once at a time.
The Final Product Application
Final product widely used in fields of auto wire, electric thread-passing pipes, circuit of machine tool, protective pipes of lamps and lanterns wire, tubes of air conditioner and washing machine, etc.
We have three kinds of single wall corrugated pipe machine
(1)Normal speed single wall corrugated pipe machine.The line speed of the machine can upto 8-12m/min.
(2)High speed single wall corrugated pipe machine.The line speed of the machine can upto 20-25m/min.
(3)Vacuum type single wall corrugated pipe machine. Used for making pipe with joint.

single wall corrugated pipe machine
Model	Pipe diameter	Extruder model	Motor powder	Production speed	Mold pairs	Vacuum pump(Optional)
SJDBGZ-14	5-14mm	SJ-45	11KW	6-8m/min	42
SJDBGZ-32	10-32mm	SJ-50	15KW	5-12m/min	50	1.5kw
SJDBGZ-50	16-50mm	SJ-65	30KW	3-10m/min	50	2.2kw
SJDBGZ-63	16-63mm	SJ-65	30KW	3-10m/min	50	2.2kw
SJDBGZ-110	32-110mm	SJ-75	37KW	3-6m/min	72	5.5kw

Extruder Part
Vacuum feeding system,Drying loader,Various of screw and barrel
FORMING MACHINE
The molds are design and made by ourselves,we have own machining center.
4.5-14mm Single wall corrugated pipe making forming machine
Normal speed model single wall corrugated pipe making forming machine ( POPULAR MODEL)
15-25m/min single wall corrugated pipe making forming machine
Special design Union joint single wall corrugated pipe/shisha hookah hose/magic pipe making forming machine
Single wall corrugated pipe rolling-up Winder
The advantages of plastic corrugated pipes
1. With both rigid and flexible: has sufficient mechanical properties, at the same time has excellent flexibility.
2. Compared with the plate pipe, corrugated pipe has lighter weight, save material, lower energy consumption, cheaper;
3. corrugated pipes with smooth inner wall can reduce the flow resistance of liquid in the pipe, improve the transmission capacity;
4. Good performance in resistance to chemical corrosion, can resist the effect of alkali in the soil.
5. Pipe with corrugation form can increase the load resistance of the pipe to the soil, at the same time, do not affect its flexibility,so that it can be laid on the uneven ground continuously.
6. Easily to connect and good in tightness . Easily handing, easily install, reduce the labor intensity, reduce working period.
7. Wide using temperature range, inflaming retarding, self-extinguish, safety in use.
8. safe insulation, is an ideal material for the electric wire conduit.
Our Service
Pre-sale services
1.Provide the free consultation of the machine
2.Provide the standard device and the flow chart
3.According to the clients' special requirement, offering the reasonable plan and free design helping to select the machine
4.Welcome to visit our factory or the domestic clients' factory.
Services during the sales
1.Help client design the factory and offering professional advice, free engineering drawing for the factory layout.
2.Inspect the machine before leaving the factory.
3.Send our experienced workers and engineer to your factory for installing and adjusting all the machine
4.Train the first-line operator.
5.Provide the basic formula
After sale services
1.One year warranty
2.24 hours online service
3.Engineers available to service machinery overseas
4.Provide technical exchanging
If you are interested in our corrugated pipe machine,please contact me at any time.
now we have ready made machine in the factory.
