Rvb Speaker Cables Wire Copper PVC Insulated Cable

Product Description

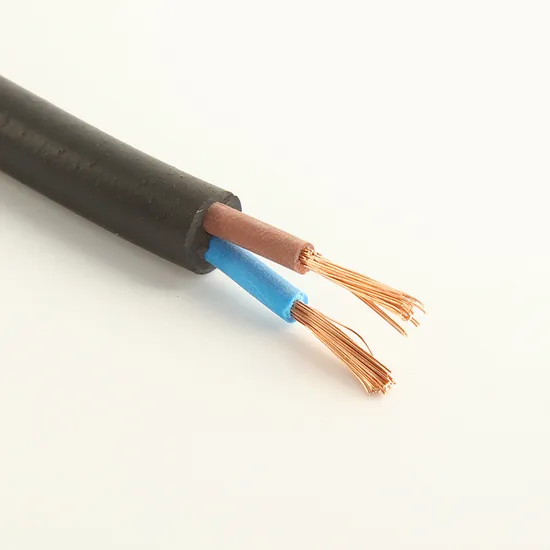

RVB speaker cables wire copper pvc insulated cable
Product Description Speaker wire is a passive electrical component described by its electrical impedance,
The impedance can be broken up into three properties which determine its performance: the real part of the impedance, or the resistance, and the two imaginary components of the impedance: capacitance and inductance.
The ideal speaker wire has no resistance, capacitance, or inductance.
The shorter and thicker a wire is, the lower is its resistance, as the electrical resistance of a wire is proportional to its length and inversely proportional to its cross-sectional area (except superconductors).
The wire's resistance has the greatest effect on its performance.
The capacitance and inductance of the wire have less effect because they are insignificant relative to the capacitance and inductance of the loudspeaker. As long as speaker wire resistance is kept to less than 5 percent of the speaker's impedance, the conductor will be adequate for home use.
Application: For use as a signal wire connecting amplifier and speakers in an audio system..
Product Parameters Jacket: A variety of colors transparent PVC & Colored PVC
Jacket colour: Red and Black, Clear, Yellow, Blue, etc or according to customer's request
Standard: AWG or according to customer'
Conductor: OFC/TCU/CCA/TCCA/CCS
Rated Voltage: Low
Red and black speaker cable CU,CCA conductor, any specification and color could customize, 100meters / plastic spool packing

Specifications
1)Conductor: Tin copper,bare copper,cooper clad steel or CCA
2)Insulation: PVC-flame proof
3)Cable core: 2C, 4C, 6C, 8C, 10C
4)Shield: Single or double bonded aluminum foil. Unbonded aluminum foil, aluminum tape screen
5)Jacket: PVC
6)Standard packing: 100m/roll or as per requirement
Resistance Unbalance:<2.5%
Insulation Resistance:>3000Mohms-km
Mutual Capacitance:<100nF/km@1KHz
Impedance:100ohms+/-10%
Conductor tensil strength:>245Mpa
Conductor Resistance:<125ohms/km

Model Section MM2 OD 12GA X2C 3.31MM2 4.5X9.0MM 14GA X2C 2.08MM2 3.5X7.0MM 16GA X2C 1.31MM2 3.0X6.0MM 18GA X2C 0.823MM2 2.5X5.0MM 20GA X2C 0.519MM2 2.2X4.4MM 22GA X2C 0.324MM2 2.0X4.0MM 24GA X2C 0.205MM2 1.8X3.6MM 0.5MM2 x2c 0.50MM2 2.4X4.8MM 0.75MM2x2c 0.75MM2 2.5X5.0MM 1.0MM2 x2c 1.0MM2 2.8X5.6MM 1.5MM2x2c 1.5MM2 3.2X6.4MM 2.0MM2x2c 2.0MM2 3.8X7.6MM 2.5MM x2c 2.5MM2 4.2X8.4MM 4.0MM2 x2c 4.0MM2 5.0X10.0MM 6.0MM2 x2c 6.0MM2 5.5X11.0MM

10GA X2C	5.26MM2	5.5X11.0MM

All models:
BV,BLV,BVR,BVV,BLVV,BVVB,BLVVB,RV,RVB,RVS,RVV

Code Designation by IEC	Code Designation by GB	Rated Voltage	Name	Application	Rated Temperature
60227 IEC 01	BV	300/500V	Copper conductor PVC insulated rigid cable (electrical wire)	Fixed laid indoors Instrument etc.	0°C to +70°C
60227 IEC 05	BV	450/750V
	BLV	450/750V	Aluminum conductor PVC insulated rigid cable (electrical wire)
	BVR	450/750V	Copper conductor PVC insulated semi-flexible cable (electrical wire)	Be for laying permanent place where flexible required.	0°C to +70°C
60227 IEC10	BVV	300/500V	Copper conductor PVC insulated PVC sheathed round rigid cable (electrical wire)	Fixed laid, fit for the places with high mechanical protection and moisture place, can be laid in the air or underground.	0°C to +70°C
	BLVV	300/500V	Aluminum conductor PVC insulated PVC sheathed round cable (electrical wire)
	BVVB	300/500V	Copper conductor PVC insulated PVC sheathed flat cable (electrical wire)
	BLVVB	300/500V	Aluminum conductor PVC insulated PVC sheathed flat cable (electrical wire)
60227 IEC 02	RV	450/750V	Copper conductor PVC insulated flexible connector cable (electrical wire)	Mainly used at middle and light style moving electronics, home appliances, power and lighting and the places where flexible required	0°C to +70°C
60227 IEC 06	RV	300/500V
60227 IEC 42	RVB	300/300V	Copper conductor PVC insulated flat flexible connector cable (electrical wire)
	RVS	300/300V	Copper conductor PVC insulated flexible twisting connector cable (electrical wire)
60227 IEC 52	RVV	300/300V	Copper conductor PVC insulated PVC sheathed round flexible connector cable (electrical wire)
60227 IEC 53	RVV	300/500V

Company Profile Does your business searching for a supplier of high quality Cables?We know quality is important to you and your business that's why we take it seriously. Whether it's the quality of our products or the service you receive, we constantly strive to be better.Our manufacturing facility is equipped with modern cable making plant and equipment, allowing us to control all aspects of the manufacturing process; From wire drawing and compound manufacture through to the subsequent cable manufacturing processes to achieve the finished product. This allows us to be at the forefront of product development in order to maintain our cables at the highest quality.Spring Electronics was start work in year 2012. We are consist of three factories and one import & export company. One factory doing research and manufacture CATV / fiber optic system equipment, one factory manufacturing LED Products, one factory manufacturing components & accessories. All factories are ISO: 9001 certified, also we achieved some other international certificates, such as (UL), ETL, CE, RoHS...Since founded, Spring is committed to supply high quality products for our clients. After continuous investment on researching, absorbing and training, we built a honor team and successful management system. Under ISO9001: 2000 and 5S management systems, each Spring people cultivated good customs and obey standard operation instructions and procedures. Under strict inside and outside QC system, lead us as a flag of quality. Ensure our clients use our products worry-free. Then fasten ties built in years cooperation, also the long-term friendship!SPRING, stand and consider from customer`s point, we always think and make better services. Not only during production, also prior to shipment, we have a separately department to do inspection, it makes much better services and guarantee to our clients. That's why our brand "Spring" is famous in local market, and more and more worldwide customers trust us and rely on us after cooperation.Quality SPRING, Innovation Development!Every SPRING people warmly welcome you come to visit us. We are sure you will feel happy and deserve your visit. You'll find things goes easy while during our cooperate.
Our Advantages 1) Quick Response --All inquiries will be replied within 24 hours. 2) Professional Quotation --All prices will be quote according to customers' detailed specifications & requirements. 3) OEM & ODM Service 4) Can print your own brand on the jacket printing with foot or meter marking. 5) Make customized designs for stickers, drums, outer cartons, etc. 6) Stable Quality --All materials and products passed restrict QC procedures,comply with international standards. 7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after Confirmation in usual.
After Sales Service --We chose the fastest vessel to POD for delivery our goods to clients,--All Documents will be issued according to clients' instructions, to save troubles from local customs.--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.
FAQ
Q1: What kind of cable do you produce?A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etcWe also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc Q2: What's your MOQ? Can you offer free samples?A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side. Q3: What's your delivery time?A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order. Q4: What's your payment term?A: We accept T/T, L/C,Western Union.Other payments accept through negotiation. Q5:What's your trade term?A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term Q6: Where is your factory located? How can I visit there?A: Our factory is located in Lin'An HangZhou City,ZheJiang Province,China.1 hour drive from HangZhou XiaoShan International Airport3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo
