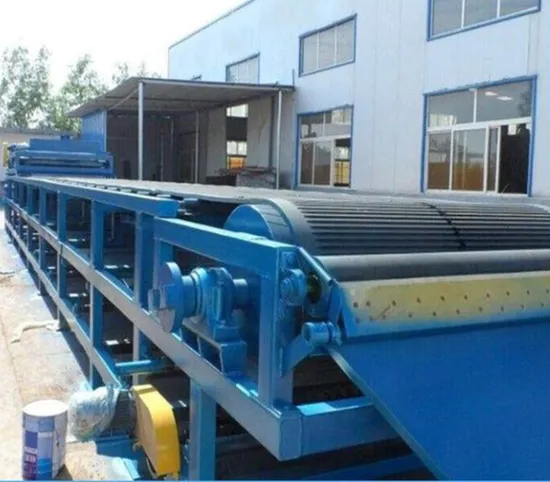

PBF Horizontal Vacuum Belt Filter
PBF series sequential plane vacuum belt type filter is one new filter with high automatization. Treating filter cloth or filter net as medium, the materials are levelly put on the filter medium to carry out solid-liquid separation making use of gravitated materials and vacuum suction. It fits for materials with different concentrations with high efficiency and used by a lot of industries.
Characteristics:
Feed, filter, rinse, remove residue and regeneration of the filter cloth can be finished sequentially and automatically with highautomatization.
Wash the materials with multilevel advection or refluence, filter liquid and rinse liquid can be separated.Fast filtration with thin layer can be realized for materials with low filterability and high viscidity.
The module design can be consolidated freely with high adaptability.
PLC control fits for remote and concentrated control.
Snake type deviation correction is adopted to prevent deflection and warp of the filter cloth.
Detailed Photos

PBF series sequential plane vacuum belt type filter is one new filter with high automatization. Treating filter cloth or filter net as medium, the materials are levelly put on the filter medium to carry out solid-liquid separation making use of gravitated materials and vacuum suction. It fits for materials with different concentrations with high efficiency and used by a lot of industries.
Characteristics:
Feed, filter, rinse, remove residue and regeneration of the filter cloth can be finished sequentially and automatically with high automatization.
Wash the materials with multilevel advection or refluence, filter liquid and rinse liquid can be separated.
Fast filtration with thin layer can be realized for materials with low filterability and high viscidity.
The module design can be consolidated freely with high adaptability.
PLC control fits for remote and concentrated control.
Snake type deviation correction is adopted to prevent deflection and warp of the filter cloth. Specificatons

Materials Name	Liquidtosolid Ratio	Water Content of Filter %	Production Efficiency Kg/m3/h	Materials Name	Liquidtosolid Ratio	Water Content of Filter%	Production EfficiencyKg/m3/h
Citric Acid	5/1-3/1	15	25.8	Miscible liquids of sodiumhydroxide and CUS	4/1	19.6	416
Zinc Oxide	10/1	51.2	75.9	ABS resin	10/1	36-38	170-232
Mining slurry soaked by Mno reductico acid	3.1	45.06	88.46	Calcium Phosphate Ore Magma	3.5/1	21.5	345
Ferromagnet	2.5/1-4/1	7.6	500-1000	Soluble Phosphor Fertilizer	2/1-5/1	7-10	1000-2000
Sulphur mine	4/1-2.5/1	11.63	360-800	Vitriol dirt	1.5/1	37-40	665-780
Copper mine	4/1-2.5/1	12	400-600	Aluminous rocks	5/1-4/1	26.4-29	1700
Mine remaining part	9/1-4/1	21.4	300-500	Caustic mud	4/1	47-51	266-613
Iron-stone	2/1-1.5/1	8-10	2000-3000	Residue silicon of aluminium sulphate	1.5/1	37	200
Manganite	2/1	15-17	800-1000	Fermentated liquid of gentamicin	1/1-2/1	33.1	78.5
Aluminium Hydroxide	4/1	15-17	350	Coarse zinc oxide	4/1	23.5	233
Fluorite power	2/1	11	800	Fluoride-bearing calcium lime	4/1-5/1	42-51	200-560
Caustic mud	4/1	47-51	266-613	Ammonium Salt	4/1	18-20	1000-1500
Vanadium Oxide(V2 O5)	3/1	33	174	Sodium silicofluoride	3/1	15-20	300-500
Coal ash	10/1	20.7	4.9m3/m3/h	Wet cement	2/1	16-20	787
Gold mine	2/1	25-27	111	Fine coal of coal dressing	4/1	22.4	218
Sub-ammonium tungstate	2/1	71	200	Tail coal of coal dressing	6/1	25	100
Organic nitrous dye-stuff	30/1-20/1	69	100	Zinc Sulfate Ore Magma	5/1	45-50	312
4A zeolite	80-100 g/L	≤43	164	Agate seed	200-400 g/L	≤20	684
Finished agate	260-600 g/L	≤15	125	Silica residue	4.5	≤35	342
Baeyer aluminium hydroxide seed	400-800g/L	≤15	2000	Desulfuration Gypsum	1/1	10	800-1000
Boehmite	8/1	60	30-50

Filter Width	0.625-2.0(m)		2.5-3.0(m)		0.625m		1.25		1.6		2.0		2.5		3.0
Filter Length	N	L	N	L	Filter Area	Weight	Filter Area	Weight	Filter Area	Weight	Filter Area	Weight	Filter Area	Weight	Filter Area	Weight
3000	0	6125	1	6150	1.9	2400	3.8	2850	4.8	3100	6.0	3400	7.5	3800	9.0	4200
4500	1	7625	2	7650	2.8	2600	5.6	3100	7.2	3400	9.0	3750	11.3	4200	13.5	4650
6000	2	9125	3	9150	3.8	2800	7.5	3350	9.6	3700	12.0	4100	15.0	4600	18.0	5100
7500	3	10625	4	10650	4.7	3000	9.4	3600	12.0	4000	15.0	4450	18.8	5000	22.5	5550
9000	4	12125	5	12150	5.6	3200	11.3	3825	14.4	4300	18.0	4800	22.5	5400	27.0	6000
10500	5	13625	6	13650	6.6	3400	13.1	4100	16.8	4600	21.0	5150	26.3	5800	31.5	6450
12000	6	15125	7	15150	7.5	3600	15.0	4350	19.2	4900	24.0	5500	30.0	6200	36.0	6900
13500	7	16625	8	16650	8.4	3800	16.9	4600	21.6	5200	27.0	5850	33.8	6600	40.5	7350
A					600		600		600		600		500		500
B					2400		2400		2400		2400		2000		2000
C					3000		3000		3000		3000		2000		2000
D					1550		1550		1650		1650		1700		1700
E					1100		1800		2200		2600		3150		3650
F					2100		2800		3200		4200		4150		4650
G					973.5		973.5		973.5		973.5		1028.5		1028.5
H					1348.5		1348.5		1348.5		1348.5		1403.5		1403.5
I					585		585		585		585		612		612
J					1104		1104		1104		1104		1163		1163
K					2030		2736		3136		3536		4146		4646
M					1300		1300		1300		1300		1300		1300
R					1250		1250		1250		1250		1350		1350
S					1400		2100		2500		2900		3450		3950
T					1670		1670		1770		1770		1870		1870
