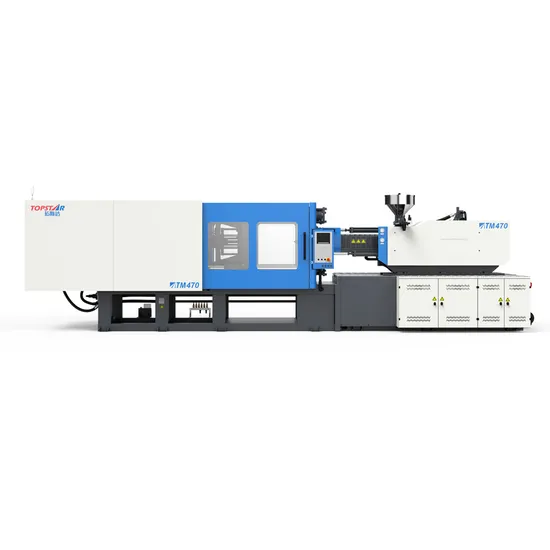

Fast Cylce Horizontal Injection Molding Machine for Plastic Toys Making with CE

Product Description

Fast Cylce Horizontal Injection Molding Machine for Plastic Toys Making with CE

Product Description:
The TM series injection molding machine has the ability to mold dense plastic products with complex appearance, precise dimensions or metal inserts in one go. It's widely used in electronics, packaging, 3C, auto parts and FMCG industries, etc.
Product Features:
1. Stable and sturdy, simple and practical.
2. High reliability and easy to operate.
3. Easy to process and install.
4. Easy to repair and maintain.
Accessory Introduction:
1. Advanced oil circuit design with European professional controller makes the machine action stable, combined with high product yield, fast response time, precise control, easy operation, and meet a variety of process requirements.
2. Diagonal double injection mold shift oil cylinder and linear guide, more accurate and stable injection.
3. Optimized and upgraded platen, with reliable structure and small deformation, can effectively protect the equipment and improve the service life of mold.
4. Focus on the actual customer experience, including industrial design, human-machine interaction and other details optimization.
5. Standard screw: high performance nitride steel, durable and efficient, wide application.
High color mixing/high mixing screw: to meet the high color mixing products, easy to change color.
Custom screw: specially customized plasticizing components for different products, such as PC, PA, etc.
6. Professional matching of plasticizing components to meet the plasticizing requirements and color mixing performance of different materials.
Parameter Table:

INJECTION UNIT	UNITS	TM470
Screw Diamete	mm	75	80	85
Screw L/D Ratio	L/D	21.3	20.0	18.8
Screw Stroke	mm	360	360	360
Shot Volume	cm3	1590	1810	2043
Shot Weight(ps)	g	1447	1647	1859
	oz	50.9	58.0	65.4
Injection Pressure	kgf/cm3	1984	1744	1545
Injection Rate	cm3/s	440	501	566
Injection Rate	mm/s	100	100	100
Screw Speed	rpm	170
Nozzle Contact Force	t	9.1
Nozzle Stroke	mm	450
CLAMPING UNIT	UNITS	TM470
Clamping Force	t	470
Opening Stroke	mm	800
Platen size(H×V)	mm	1160*1160
Space Between Tie Bars(H×V)	mm	820*820
Mlould Thickness (Min)	mm	300
Mlould Thickness (Max)	mm	870
Max. Daylight	mm	1670
Ejector Force	t	11.0
Ejector Stroke	mm	220
Locating Ring	mm	160
POWER/HEATING UNIT	UNITS	TM470
System Pressure	kgf/cm3	175
Pump Power	kw	52
Heating Power	kw	31.6
Number of Temp Control Zones	-	5+1
0THERS	UNITS	TM470
Machine Dimensions(LxWxH)	m	8.65*1.92*2.29
Oil Tank Capacity	L	600
Machine Weight	t	17.5
Platen Dimensions
Platen Dimensions

Note: The company reserves the right to modify the technical parameters without prior notice.
