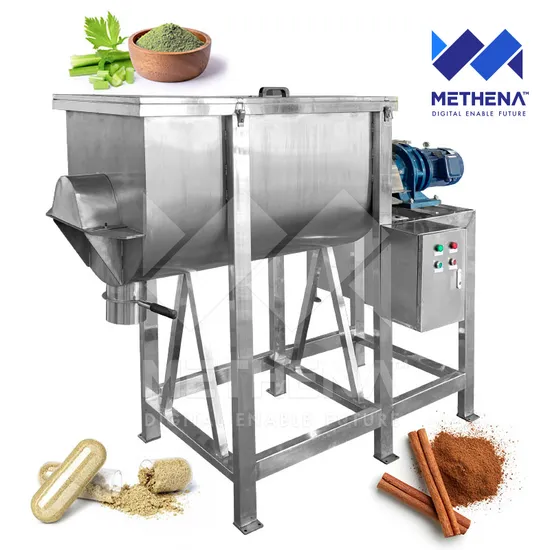

Horizontal Paste Powder Nut Ribbon Mushroom Compost Substrate Mixer Machine for Powder and Chemical
Basic Info.
Model NO.
MTN-HM21
Application
Powder
Application Area
Agricultural Chemicals, Food
Certification
CE, ISO
Condition
New
Control System
Button Control
Cooling Method
Air Cooling
Heating Method
Hot Air Heating
Main Material
Carbon Steel, Stainless Steel
Mixing Capacity
1000L & Above
Safety Features
Emergency Stop Button, Safety Lock
Speed Control
Variable Speed
Speed Range
60 R/min & Above
Stirring Type
Spiral
Temperature Control
Without Cooling System
Working
Shear Mixer
Material Processed
Plastics, Chemicals, Food
Key Selling Points
Easy to Operate
Core Components
Motor, Gear, Gearbox, Bearing, Engine
Machine Construction
Horizontal
Barrel Volume (L)
100-3000L
Machinery Test Report
Provided
Mixing Type
Double Ribbon Mixer
Advantage
High Productivity
Transport Package
Standard Export Wooden Case
Trademark
METHENA
Origin
China
Production Capacity
5000 Sets/Year
Packaging & Delivery
Package Size
1000.00cm * 800.00cm * 600.00cm
Package Gross Weight
600.000kg
Product Description
Horizontal Paste Powder Nut Ribbon Mushroom Compost Substrate Mixer Machine for Powder and Chemical Product DescriptionIntroduction
Horizontal mixer is a professional for all kinds of granules, powders,flakes and particles of uniform mixing needs of efficient equipment.The machine adopts horizontal body and spiral belt mixing, which has the advantages of small floor space, easy operation, simple maintenance, high uniformity, small residue, good sealing, no vibration,small dust, etc.
Application
1.Horizontal mixer is mainly used for mixing corn, chili powder, spices,feed, flour, soybean powder, feed additives and other objects.
2.Horizontal mixer is widely used in chemical industry, food industry,construction, fertilizer and agricultural industry, environmental industry, cosmetics and personal care. Application of a horizontal mixer spans across multiple industries, where efficient and consistent blending of ingredients is essential for product quality, productivity,and customer satisfaction.
Features
1.Horizontal tank, covers a small area.
2.Vertical/oblique discharge port, no dead Angle
3.Two-way S-type screw belt, mix evenly.
4.Cover the design and seal well.
5.Spindle can be customized according to material density
Parameters
| Horizontal mixer | Tank thickness (mm) | Plug thickness (mm) | Screw thickness(mm) | Motor power(kw) | Reducer | Bracket thickness(mm) |
| 100L | 2 | 3 | 4 | 1.5 | XWD3 | 2 |
| 200L | 2 | 3 | 4 | 2.2 | XWD4 | 2 |
| 300L | 2 | 3 | 4 | 3 | 250 | 2 |
| 500L | 2 | 4 | 6 | 4 | 250 | 2 |
| 600L | 2 | 4 | 6 | 5.5 | 350 | 2 |
| 700L | 2 | 4 | 8 | 5.5 | 350 | 2 |
| 1000L | 2 | 4 | 8 | 7.5 | 350 | 2.5 |
| 1500 | 2 | 4 | 8 | 7.5 | 350 | 2.5 |
| 2100L | 2 | 4 | 8 | 11 | 350 | 2.5 |
| 3200L | 2 | 4 | 8 | 11-15 | 350 | 3 |
