Metal Surface Processing CNC Double-End Milling Machine

Product Description

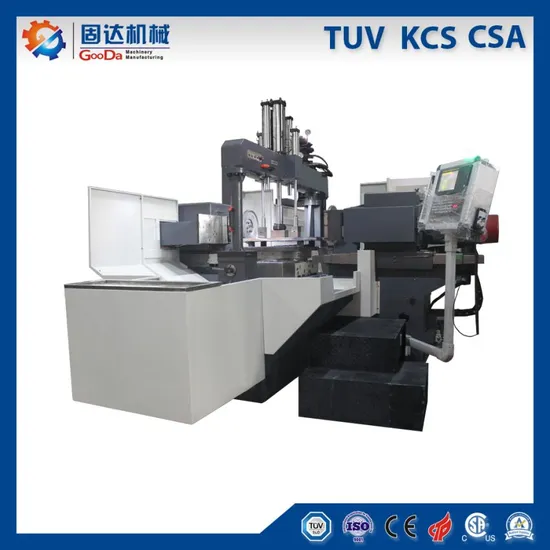

CNC twin head milling machine TH-800NC
Optional spindle driving spindle driving by Gear type
Better Stability,More Efficiency
CNC system once setting and automatic guides where work-piece loading place, automatic measurement, surface process, which can reduce working strength of operator and increase Productivity, maintain high accuracy for dimension, squareness and parallelism.
Specification:

Item		Unit	Model
			TH-800NC
Cutting Capacity	Control Axis	No.	4
	Max.Milling Size (L*W*H)	mm	800*800*240/290
	Min.Milling Size (L*W*H)	mm	220*220*20
	One time Cutting Capacity	mm	2*3.0
Travel	X axis	mm	390
	Y axis	mm	390
	Z axis	mm	1100
Feed Speed	X/Y/Z Max. rapid feed rate	m/min	8
	Max.Cutting feed rate	m/min	8
	Manual feed speed	mm/min	1-1500
Spindle	Spindle speed	Rpm	50-300
	Spindle taper	-	BT50
	Cutter diameter	mm	250 OP 300
Motor	Spindle servo motor	Kw	2*11 OP 15
	X/Y axis feed servo motor	Kw	3
	Z axis feed servo motor	Kw	3
	Rotary table Servo motor	Kw	2
	Clamper hydraulic motor	Kw	2.25
Work table	Worktable dimension	mm	600*600
	Max.Loading weight	Kg	2800
Hydraulic Clamper	Cylinder No.	Pcs	1 OP 3 OP 5
	Oil tank volume	L	60
Lubrication system	Lubricating oil tank	L	4
	Lubricating power	W	25
Floor space require (L*W*H)		mm	4.6*4.2*2.5
Machine weight		ton	14
CNC system			LNC CONTROL SYSTEM OR Mitsubishi M80A controller

CNC Duplex Milling machine is a machine that specialize in square metal, plastic & plate high speed and high accuracry milling equipment.
Merit:
1)High-speed 2F/4F milling.
2) Mass production efficiency.
3)One setting, machine fully automatic till the workpiece milling completely.
4)High precision of pieces measurment with cleaned surface. ≤Ra3.2um.
5)Environmental Dry and safty.
Design Concept & Function:
1)Full cover box design, make your workpace clean and safe.
2)The opposite axis X&Y at the same level and same speed, surface A=C B=D, getting the accuracy up.
3)Leading in Japan Mitsubishi or Fanuc system servo motor, don't worried about the break.
4)Reference tolerance ±0.01/300mm
5)Vertical oil clamping structure, stability milling.
One worker can run two machines at the same time.
Let GOODA help you save your money, and create more benefits!
You can choose FANUC system or MITSUBISHI Controller as you like.
*Gooda Milling Machine has full automatic measurement and / tool-setting, automatic tool division and automatic connection cutting, automatic rough cutting and finish cutting.
*Gooda will help you reduce setting time and reduce running cost,to increase efficiency.
The integrated high rigidity T-shaped bed, double- column structure and crosswise overhangless structure ensure high straightness accuracy and and excellent workability.
Let GOODA help you save your money, and create more benefits!
You can choose FANUC system or MITSUBISHI Controller as you like.
*Gooda Milling Machine has full automatic measurement and / tool-setting, automatic tool division and automatic connection cutting, automatic rough cutting and finish cutting.
*Gooda will help you reduce setting time and reduce running cost,to increase efficiency.
The integrated high rigidity T-shaped bed, double- column structure and crosswise overhangless structure ensure high straightness accuracy and and excellent workability.
