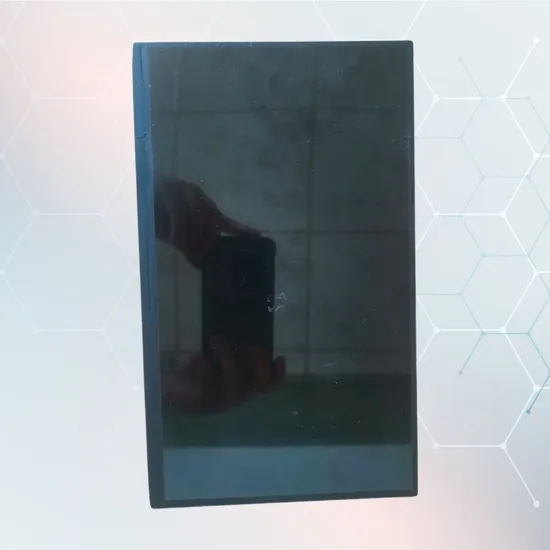

High Brightness 8 Inch Display Module Resolution Lvds Interface 1920*1200 IPS LCD Panel

Product Description

This high brightness LCD is made of full view glass, with 1920*1200 resolution, the display is very good, this product is widely used in scooter meters, electric vehicle meters, bicycle meters, outdoor handheld PDAs, medical equipment, electronic cigarettes, automotive electronics and other products.

Parameter	Specification	Unit	Remark
Active Area	172.224(H)*107.64(V)	mm
Number Of Pixels	1920(H)×1200(V)	pixels
Pixel Pitch	0.03764(H)×RGB×0.11292(V)	mm
Pixel Arrangement	Pixels RGB stripe arrangement
Display Mode	Normally Black
Display Colors	16.7M(8bit )	colors
Transmittance	3.85(Typ.)	%
Surface Treatment	HC
Contrast Ratio	1200:1(typ.)
Viewing Angle(CR>10)	85/85/85/85(typ.)
Response Time	30(typ.)/35(max.)	ms
Color Gamut	75%NTSC		@ BLU
Power Consumption	Panel: 0.6(Typ.)	watt	@white
Outline Dimension	176.224(H)*117.14(V)*1.22(typ) (FOB-Panel)	mm

TFT LCD Display
Achieve micron level ultra-fine
circuit, stable function. Viewing Angle
Using professional tempered glass, the surface strength is as high as 7H or more, the structure can be made of ultra-thin thickness, and Borderless all-round viewing angle.Support Custom
Customized LCD Size & ResolutionCustomized Interface and Pins definitionCustomized FPC Shape and Material
Shenzhen Chengchen Technology Co., Ltd. was founded in 2015, the company is located in Baoan District, Shenzhen Guangdong-Hong Kong-Macao Greater Bay Area. Focusing on the combination of innovative display and intelligent hardware, we have a professionalR & D technical team, which can design and customize different product structures according to customer needs, strong hardware and software solution design capabilities, providing customers with high-quality display modules, touch one and one-stop solutions, and a complete product assembly plant.Products are widely used in industrial automation equipment, automotive electronics, medical display equipment, drone remote control, robots, industrial mobile terminals,conference equipment,intelligent business display, Internet of Things hardware display and other products. Chengche can provide you with the best quality products and the most satisfactory service.
1. Why choose us?* We have nine years of industrial LCD screen production experience, and we have a high reputation, and with many well-known companies have cooperative relations, there are many very successful cases. OEM/ODM offered for our customers. We are one of the leading manufacturer in this field.
2. What are the estimated lead times for the products?
* Samples that are in stock will be dispatched within 3 days of payment.
* Mass production typically takes between two to four weeks to complete.
3. What is the warranty duration for the products? * Our standard warranty period is generally one year, although it may vary depending on the specific product. 4. What is the Minimum Order Quantity (MOQ) for the products? * The MOQ varies for different products. Please get in touch with our sales team for detailed information regarding specific product MOQs. 5. How can I find the right product? * Please send us your requirements, we will recommend our standard products, if it's not fit, we will do the necessary adjustment & customization.
