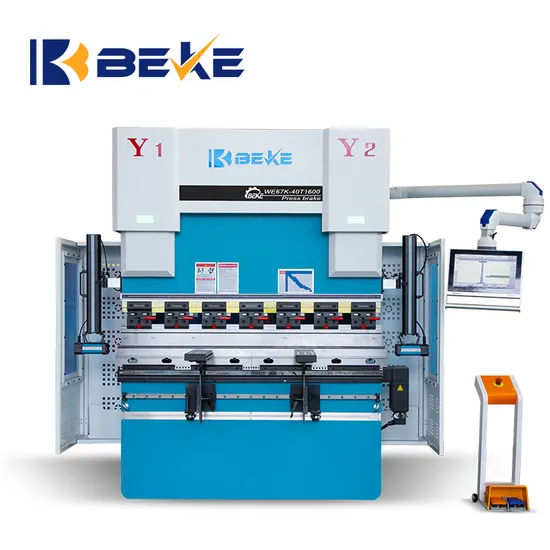

Da53tx Press Brake 40t1600 Sheet Metal Bender
Basic Info.
Model NO.
DA53TX 40T1600
Warranty
3-year
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Model No.
We67K 40t 1600
Main Motor
Siemens
Servo Drive
Inovance
Hydraulic Valve
Rexroth
Light Curtain Protection
Optional
Transport Package
Wooden Box or Container Directly
Specification
3700*1800*2350
Trademark
BEKE
Origin
China
Product Description
Product Description Detailed Photos
Packaging & Shipping
Certifications
customer
Parametric
| ITEM | VALUE |
| ITEM | VALUE |
| Model | WE67K 40T1600 4+1Axis |
| Pressure | 40ton |
| Max bending length | 1600mm |
| Max bending thickness for 1m sheet | 5mm |
| Column distance | 1300mm |
| Slide stroke | 200mm |
| Max opening height | 470mm |
| Throat depth | 400mm |
| Main motor power | 5.5kw |
| Machine size | 2200X1750X2450mm(LxWxH) |
| Weight | 3500kg |
| Axes | Y1, Y2, X, R |
| WE67K CNC sheet metal press brake with streamlined design ,high speed ,high precision ,high rigidity. Electro hydraulic servo system,full loop controlling the synchronization of the upper slider. Mechanical compensation on crowning of worktable and deformation compensation on throat, ensuring good bending strength and precision. Backgauge is driven by digital AC servo motor,moved with ball screw,guided by linear guide. Now the press brake can provide variety of choicesand features for the products and function, to realizethe optimal bending process and solutions. | |
| DELEM DA53T CNC System Features: "Hot-key" touch navigation 10.1" high resolution colour TFT Up to 4 axes (M1Y2 + 2 aux axes) Crowning control Tool / material / product library Servo and frequency inverter control Advanced Y-axis control algorithms for closed-loop as well as open-loop valves TandemLink (option) USB memory stick interfacing Profile-T offline software | |
