High Quality 3.5-4 Ton Mini Excavator 3 Ton Track Hoe Mini Excavator

Product Description

https://bonovo-china.en.made-in-china.com/product/ZOwAWlvPnGTf/China-Factory-Mini-Skidsteer-Loaders-Machine-Small-Wheel-Skid-Steer-Loader-with-Attachments.html

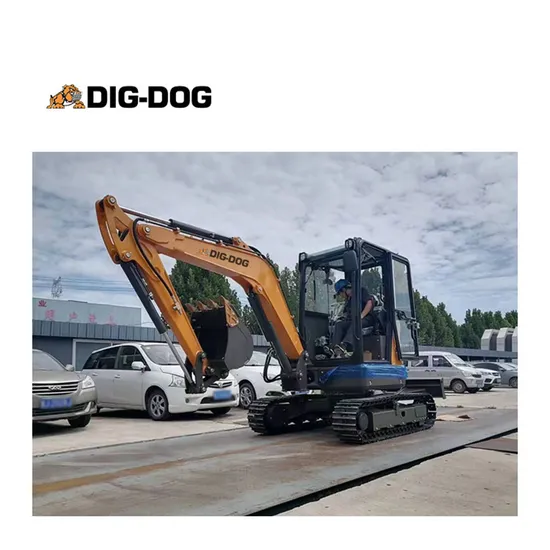

DIG-DOG DG35 MINI EXCAVATOR 3.5-5 TON
DG35 mini Excavator with Tailless small wing structure and boom-side-shift option, which can be used for narrow-space operation tailless rotation, deflective boom, first-class configuration, load pilot operating system, changeable rubber track, imported engine, environmental protection standard (Euro 5 and EPA 4). Comfortable enclosed cab with 360-degree panoramic view to provide a comfortable environment for work.
DG35 with beautiful appearance, high configuration,superior perfomance,low fuel consumption,wide operating range. It is suitable for loosing soil of vegetable greenhouse,campus greening of municipal departments. digging the hole for tree planting of.Fuit-land Nurseries. concrete pavement crushing,sand-gravel material mixing, construction work in the narrow place and so on.
Product Parameters

MINI EXCAVATOR		DIG-DOG DG35
Type of tracks		Iron track
Machine weight		3500kg
Bucket Capacity		0.12m3
Engine	Model	Kubota D1703 18.5KW/2200rpm
	Max. Turque	97.4N.m/1500RPM
	Type	In-line, water cooled, Mechanical pump, normally aspirated
	Displacement	1.647L
	No. of cylinder	4
Main Performance	Swing Speed	r/min	0-11
	Traveling Speed(high/low)	km/H	4.4/2.4km/h
	Grade ability	°	0.58
	Max. Bucket Digging Force	kN	30.4
	Arm Digging Force	kN	18.2
	Ground Pressure	Kpa	32
	Hydraulic system pressure	Mpa	22.5
	Machine Weight	KG	3810
	Boom Length	Mm	2535
	Arm Length	Mm	1400
	Fuel Tank capacity	L	42
	Hydraulic Tank capacity	L	48.5
	Engine oil capacity	L	7
	Carrier roller(each side)		1
	Supporting roller(each side)		4
Overall Dimensions	Overall Length	mm	4915
	Overall Width	mm	1720
	Overall Height	mm	2525
	Mini Ground clearance	mm	295
	Track width	mm	300
	Axle base(Track length on ground)	mm	1670
	Length of track	mm	2154
	Track Gauge	Mm	1420
	Swing radius at tail	Mm	860
	Swing radius at front	Mm	2538
	Height of blade	Mm	350
Operation parameters	Bucket Capacity	m3	0.12
	Max. Digging Radius	mm	5480
	Max. Digging Depth	mm	3208
	Max. Digging Height	mm	4800
	Max. Dumping Height	mm	3406
	Max. vertical digging depth	mm	3208

Rated Models

DG10 Power supply: 7 KW Pipe excavation volume: 0.025 m³Machine weight: 1 ton	DG12 Power supply: 8.3 KW Pipe excavation volume: 0.03 m³ Machine weight: 1.2 ton	DG15 Power supply: 7 KW Pipe excavation volume: 0.025 m³ Machine weight: 1.4 ton	DG17 Power supply: 10.3 KW Pipe excavation volume: 0.035 m³ Machine weight: 1.5 ton
DG18 Power supply: 18.4 KW Pipe excavation volume: 0.06 m³ Machine weight: 1.8 ton	DG20 Power supply: 14.2 KW Pipe excavation volume: 0.07 m³Machine weight: 2 ton	DG25 Power supply: 22.1 KW Pipe excavation volume: 0.1 m³Machine weight: 2.5 ton	DG35 Power supply: 18.4 KW Pipe excavation volume: 0.12 m³Machine weight: 3.5 ton

Detailed Photos


Standard configuration: broken pipeline, can be equipped with a variety of crushing hammer, soil, wood, spiral drill and other different accessories, A tractor serves several purposes.Iron track and rubber track can be interchangeable at any time, adapt to various construction conditions, can bias the rotating arm, can deflection work easily undermine the foundation.
Optional configuration: quick change (mechanical | hydraulic) / grip / screw (200 mm | 300 mm) / crushing hammer / booster / Rake / fork /thumb (mechanical | hydraulic) / narrow bucket (260 mm | 300 mm) / clean bucket (800 mm | 1000 mm) / tipping bucket (800 mm | 1000 mm)

Packaging & Shipping
Company Profile
DIG LOVE, BUILD DREAM!
DIG-DOG is a branch of BONOVO Group. We have an independent brand and are dedicated to excavation projects in the construction machinery market.
DIG-DOG can provide excavators, wheel loaders, backhoe loaders, skid steer loaders, forklifts for the construction machinery industry, so that you can buy not only a single machine, but also full range of multi-functional and customized attachments to deal with different work requirements.
DIG-DOG machinery products exported more than 80 countries, and DIG-DOG have our own brand agents in North America, South America, Europe and many other regions,and we welcome more friends to become our brand agents. We can provide customers with more convenient and comprehensive after-sales service. Choose DIG-DOG to make your excavation work more easier and more convenient, and choose DIG-DOG to fully realize the possibility of configuring more accessories for the machine.
FAQ
1. Are You Original Manufacture?
Yes, DIG-DOG is a Manufacturer In Construction Machinery In China And We Have The Wholeseries Products You Need.
2.Which Incoterms Terms Can We Work?
Normally We Work On FOB, CFR, CIF.
3.Which Payment Terms Do You Accept?
Normally We Can Work On T/T Term Or L/C Term.
4.What About The Warranty Time?
12 Months After Shipment Or 2000 Working Hours.
5.What About The Delivery Time?
7-30 Days After Receiving The Deposit.
6.What About The Minimum Order Quantity?
The MOQ Is 1 Pcs.
7.What to Look For When Buying A Mini Excavator?
-Consider What Size Mini Excavator Will Get The Job Done Efficiently.
-Think About Your Job Surface.
-Assess The load.
-Look At The Controls.
-Assess Other Functional Features.
-Think About The Attachments For Your Mini Digger.
8. Price Difference?
The product prices on the website fluctuate due to factors such as raw material costs. Please refer to the quotation from the business person in charge.
