Pb/Particle Board/Chipboard/MDF/HDF/OSB Making Machine for 100-500m3/OSB/MDF/HDF

Product Description

Pb/Particle Board/Chipboard/MDF/HDF/OSB Making Machine for 100-500m3/OSB/MDF/HDF

√ Introduction of OSB board

What is OSB board? OSB be called Oriented Strand Board, it is the Wood-based Structural Panels.
OSB board is a kind of directional structural board made of small wood, thinning wood and wood core as raw materials, processed by special equipment to grow long planer (generally 40-100mm long, 5-20mm wide, 0.3-0.7mm thick), by deoiled, drying, sizing, directional paving, hot pressing and other processes. it is widely used for making the wall on the bottom. It is a panel from Europe and developed rapidly.
For making OSB board, it need kinds of different machines such as wood chipper, glue blender, rotary dryer, hot press, panel sizing and so on

√ OSB Making Equipment introduction from Shandong MingHung

For making OSB board, it related with many different production steps, and different machines required. We as China famous and professional factory of OSB making equipment, MDF making machine, and Particle board making machine, let us introduce you the production process for making OSB board
The whole OSB production process about as this: Raw materials wood → Wood strands → Drying → Gluing → Forming →Press → Cutting → OSB.
Now i am gonna introduce the important machine for you
<1> Disc Chipper

Disk chipper is a kind of wood chipper, which is a special wood chipper for the production of high-quality wood chips.
Disk chipper is a special equipment for preparing high-quality wood chips, which is suitable for paper mills, particleboard factories, fiberboard factories and wood chip production bases. It can cut logs, small wood and other high-quality industrial wood chips with uniform growth, smooth incision and uniform thickness, and can also cut wood, plate and so on.
Its operation is simple and convenient

Knife disc diameter	Feeding way	Outfeeding way	Weight /kgs	Capacity /m3
950	Incline	Upper	2100	5-8
1220	Horizontal	Upper	5000	15-20
1600	Horizontal	Down	8430	25-45
1800	Incline	Down	13460	80-85
2060	Horizontal	Down	22000	125-130

<2> Rotary Drum Dryer

Drum dryer for drying wood chips and wood strands. It can be different drying capacity as you requires

Original flake moisture	≤80%
End flake moisture	2±0.5%
Dryer diameter	Φ3.2 -Φ6.2 m
Heating medium	Hot flue gas

<3> Screening

Flakes or strands must be graded into different fractions according to their size in order to form the layers of the panel.

Screen mesh layers	1 / 2 / 3
Screen area	7.5 -26 m2
Screen box passage	Single or Double
Support way	Elastic

<4> Forming

The function of forming machine is that Uniform distributing the flakes both lengthwise and crosswise as well as the layer formation of top and middle layer flakes over the cross section of the panel.
The forming machine includes: Airflow forming machine and Combined mechanical forming machine. they have their each advantages and features

Name	Airflow forming machine	Combined mechanical forming machine
Surface forming	Airflow	Diamond roller +Positive/negative pressure airflow assist
Core forming	Cage roll	Cage roll
Forming width	4/6/8feet	4/6/8feet

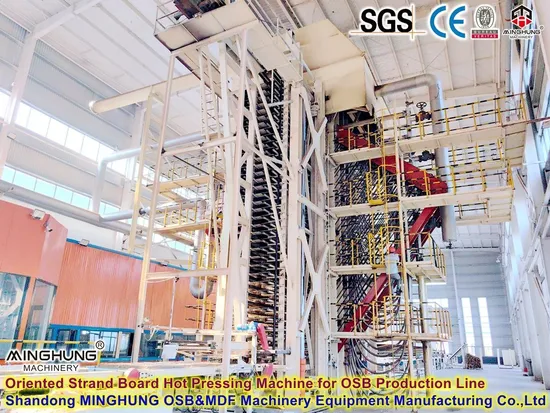

<5> Pressing

During press, the glue is cured under the influence of pressure and temperature and the mat is pressed to the specified thickness.
Hot press can be designed to be different layers and pressure and size to satisfy different requires

Pressure	1500ton
Layers	20
Oil cylinder	Φ450mm*4pcs
Heating medium	Oil
Heating temperature	~180 ºC

√ About Us

SHANDONG MINGHUNG OSB&MDF MACHINERY MANUFACTURING EQUIPMENT CO.,LTD, is one very famous and professionial factory who manufacture osb automatic production line, mdf production line, and particle board production line. From raw materials to the final products, we can design and offer the suitable machine for you as your own production capacity and size and other conditions.
One completely production line for making OSB board, MDF board, and Chipboard, it is very big, and include different types making equipment. Get the suitable, good quality machine is very important for your business development.
We have advanced production technology and equipment, professional department of technology, experienced engineers and workers, to offer the quickly and fast full service, to help you start this business.

√ Delivery of our OSB equipment & MDF machine & Chipboard machine

Until now, we have exported many osb equipment & mdf board machine /particle board making machine to different countries and got good feedback.
If you need, welcome contact us, You worthy of Good machine.
