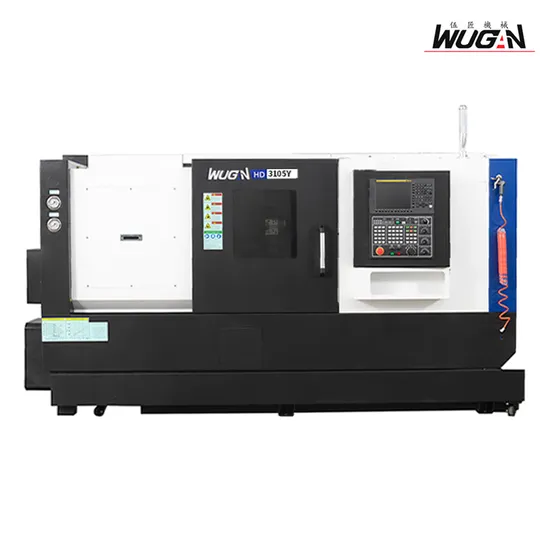

HD3105y-46 Compact Y Axis CNC Lathe, CNC Lathe Desktop for Small Workshops

Product Description

Product Description
· One-piece bed,Crafted with a 30° inclined bed, this design significantly enhances machining stability, providing reliable and consistent performance.
· All axes are equipped with hard rails, ensuring the production of high-quality products with precision and durability.
· Achieves impressive rapid traverse speeds up to (X/Z): 265/730 m/min, boosting productivity and efficiency.
· Features an optimal structure lineup to meet diverse customer requirements, including extended beds, turret punch presses, and servo axes.
· The compact design, with a built-in motor, minimizes the machine's overall length, making it perfect for space-limited workshops.
· Ergonomically designed for straightforward operation and easy maintenance, ensuring user comfort and convenience.
Product Parameters

ITEM			unit	HD3105Y
CAPACITY	Swing Over the Bed		mm	940
	Swing Over the Carriage		mm	870
	Max.Turning Dia.		mm	300
	Max.Turning Length		mm	660
	Bar Capacity	Main	mm	74
		Sub	mm	-
SPINDLE	Chuck Size	Main	inch	10′′
		Sub	inch	-
	Spindle Bore	Main	mm	74
		Sub	mm	-
	Spindle Speed	Main	r/min	3,000
		Sub	r/min	-
	Motor(Max/Cont.)	Main	kw(HP)	18.5/15
		Sub	kw(HP)	-
	Torque(Max/Cont.)	Main	N·M	470/286
		Sub	N·M	-
	Spindle Type	Main	-	BELT
		Sub	-	-
	Spindle Nose		-	A2-8
			mm	-
	C-axis Indexing		deg	0.001
FEED	Travel	X/Y	mm	215/110{±55)
		Z/ZB	mm	730
	Rapid Traverse Rate	X/Y	m/min(ipm)	24/10
		Z/ZB	m/min(ipm)	30
	Slide Type		-	BOX GUIDE
TURRET	No.of Tools		ea	12[24]
	Tool Size	O.D	mm	25[24Tool:20]
		I.D	mm	32
	Indexing Time		sec/step	0.2
	Y-Axis Type		-	WEDGE TYPE
LIVE TOOL	Milling Tool Speed		r/min	4,000
	Motor(Max/Cont.)		kw(HP)	2.7
	Torque(Max/Cont.)		N·M	46
	Collet Size		mm	∅16{ER25}
	Type		-	BMT55P
TAILSTOCK	Taper		-	MT#5
	Quill Dia.		mm	∅100
	Quill Travel		mm	120
	Travel		mm	730
TANK CAPACITY	Coolant Tank		ℓ(gal)	180
	Lubricating Tank		ℓ(gal)	3
POWERSUPPLY	Electric Power Supply		kVA	35
	Thickness of Power Cable		mm²	Over 25
	Voltage		V/Hz	220/50
MACHINE	Floor Space(LxW)		mm	3,284x1,817
	Height		mm	1,950
	Weight		kg(lb)	6,200
CNC	Controller-		-	FANUC Oi Series

Detailed Photos
One-piece Bed
Optimized Structural Analysis
Through advanced structural analysis, the main unit's structure is optimized, which reduces the machine's height while maintaining the dynamic rigidity of the bed during heavy machining. The HD-3105 model, featuring a 30° inclined bed, ensures superior machining stability.
Integrated Cutting Fluid Tank
Positioned at the front of the bed, the cutting fluid tank enhances usability, and the right side of the machine allows for easy cleaning of ferrous chips.
Hard Rail
All-axis hard rails offer exceptional vibration absorption during heavy cutting, guaranteeing high-quality products. The Z-axis, designed with an extended shaft, excels in machining long shaft-length products.
Sealed GIB Construction
The X-axis guideway mounting surface is protected with a sealed GIB structure, minimizing damage from cutting and prolonging the guideway's lifespan.
6-Sided Constrained Design
Travel X/Y: 265/730 mm · Spindle Box
The symmetrical box design and heat dissipation structure reduce thermal deformation. The spindle, incorporating tapered roller bearings and angular contact ball bearings, enhances cutting ability. The 3V belt design reduces vibration and extends the machine's lifespan.
Spindle Specifications: A2-8 (chuck 12")
Spindle Speed: 2,800 rpm
Motor Power: 18.5/15KW
