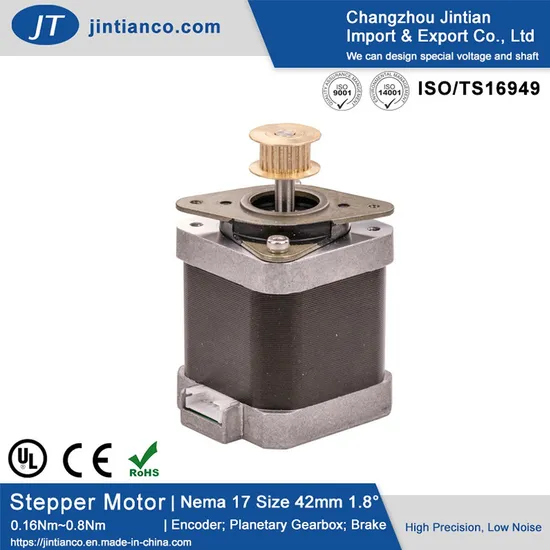

NEMA 17 Fan Stepper Motor for 3D Pritner

NEMA 17 Fan Stepper Motor for 3D Pritner

US$10.00 1 Piece (MOQ)

Basic Info.

Model NO.
JT242BP06
Number of Stator
Two-Phase
Excitation Mode
HB-Hybrid
Function
Driving
Number of Poles
2
Certification
ISO9001, ISO14001
Transport Package
Carton and Pallet
Specification
CE, RoHS, ISO
Origin
Changzhou, Jiangsu, China
HS Code
8501310000

Packaging & Delivery

Package Size
25.00cm * 15.00cm * 15.00cm
Package Gross Weight
3.500kg

Product Description

Description: Step angel:1.8°
Motor size: NEMA17 42mm
Holding torque:0.2N.m-0.8N.m
Options:Brake,Encoder,Plantary gear box
CE and RoHS approved
Applications
Use for robots stepper motor, electric automatic equipment stepping motor, medical instrument stepping motor, advertisement instrument stepper motor, lighting& audio equipment stepper motor, printer stepper motor, textile machinery stepper motor,CNC router stepper motor,3D Printer stepper motor.
Model Numbering System
Motor Specifications
nema17, 1.8 degree
Model Number Holding torque Rated Cuttent Wiring Resisitance Winding Inductance Rotor Inertia Mass Motor Length Connection Mode
Single Shaft N.m min A/Phase Ω/Phase @20ºC Mh/Phase g.cm² kg mm
JT242BP06 0.16 0.6 6.6 9.5 23 0.2 31 Connector
JT242BP12 1.2 1.8 2.4
JT243BP06 0.25 0.6 8 16.5 35 0.24 35
JT243BP12 1.2 2.1 4.2
JT244BP12 0.4 1.2 2.5 5.5 54 0.3 41
JT244BP20 2 1.05 2.1
JT245BP12 0.48 1.2 3.1 8 77 0.36 49
JT245BP20 2 1.35 3.2
JT246BP12 0.72 1.2 4 11 110 0.5 61
JT246BP20 2 1.75 4
JT243UP12 0.17 1.2 2.4 2.2 35 0.24 35
JT244UP12 0.28 1.2 3 3 54 0.3 41
JT245UP12 0.33 1.2 3.7 4.6 77 0.36 49
nema17, 0.9 degree
Model Number Holding torque Rated Cuttent Wiring Resisitance Winding Inductance Rotor Inertia Mass Motor Length Connection Mode
Single Shaft N.m min A/Phase Ω/Phase @20ºC Mh/Phase g.cm² kg mm
JT443BP12 0.25 1.2 2 5 35 0.24 35 Connector
JT444BP20 0.4 2 1.1 3 54 0.3 41
JT445BP20 0.5 2 1.4 4 77 0.36 49
nema17, 1.8 degree, Brake
Model Number Holding torque Rated Cuttent Wiring Resisitance Winding Inductance Rotor Inertia Brake static friction torque Volt/Watt Motor Weight
Single Shaft N.m min A/Phase Ω/Phase @20ºC Mh/Phase g.cm² N.m v/w kg
JT244B20M 0.4 2 1.05 2.1 54 0.5 24VDC/3.5W 0.3
JT245B20M 0.48 2 1.35 3.2 77 0.36
JT246B20M 0.72 2 1.75 4 110 0.5

Motor Connection Options
Brake Options
Plantary Gear Options
Encoder Options
