300kg Per Batch PVC Hot and Cooling Mixer Machine Unit with High Quality

Product Description

Product Description

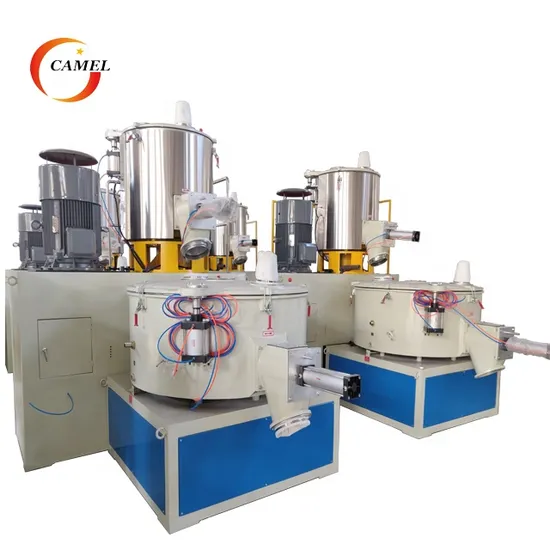

Hot and cooling mixer unit
Product Description of plastic mixer
SRL-Z series mixer unit is applicable for mixing,colouring and drying of various resin such an PE,PP,PVC etc. and in the craft of engineering plastics such as ABS,PC etc before forming and processing as well as in the mixing of phenolic resin. The unit combines heat mixing and cool mixing craft together. The materials after heat mixing can be go into cool mixer for cooling automatically, exhausts remaining gases and prevent agglomeration.
The PVC mixer is composed of high speed mixer (hot mixer), cooling mixer and control cabinet. We use 6-8mm stainless steel SUS304 for the internal wall construction. It will guarantee the mixer could use for long time under the high friction. The mixing blades are passed the static and dynamic balance testing. And the main shaft adopts fine sealing to prevent material leakage.
If you need the PVC mixer, please tell us the output you expected per hour, we will recommend the right model for you.
High quality, good price and reliable performace. Camel Machinery expects to be your plastic machines supplier.
Features:
1.advanced design,easy operation.
2. high efficiency ,low energy consumption.
3. low noise and corroision resistance
Main Technical Parameter ( Vertical Cooler) for your reference:

Model	SRL-Z100/200	SRL-Z200/500	SRL-Z300/600	SRL-Z500/1000	SRL-Z800/1600
Total volume (L)	100/200	200/500	300/600	500/1000	800/1600
Effective Volume (L)	65/130	150/320	200/360	375/650	600/1024
Rotating Speed (RPM)	650/1300-180	475/950-87	475/950-87	430/860-60	357/714-50
Mixing time (Min.)	8-10	8-10	8-12	8-10	8-12
Motor power (KW)	14/22-7.5	30/42/11	40/55/11	55/75/15	83/110/22
Overall dimension(mm)	2500*2000*2200	4580*2240*2470	4800*2640*2480	5600*3000*3100	6230*4230*4480
Weight(kg)	2500	3600	4500	5800	8300

Detailed Photos
Company Profile
Zhangjiagang Camel Machinery Co., Ltd is one of professional manufacturers for plastic extrusion and recycling equipment in China. CAMELMACHINERY aim is to be a top plastic equipment supplier in the world, base on the spirit of this principle, we are not only made our best to meet the market demand but also enhance innovative ability.
CAMELMACHINERY offers following major product lines :
1.PVC/PE/PPR/PP pipe extrusion line
2. PVC garden hose/spiral hose/steel wire reinforced hose extrusion line
3. WPC extrusion line
4.PET bottle recycling line
5.PE/PP film recycling line
6.UPVC PVC ceiling wall panel extrusion line,
7.WPC foam board production line,
8.Single shaft shredder,
9.Double shaft shredder,
10.Plastic crusher and so on...
Certifications
Packaging & Shipping
FAQ
Q1:What about the payment terms?
A1:Always 30% down payment as deposit,70% balance pay before shipping.
Q2:What about the payment way?
A2:TT,L/C at sight or other.
Q3:If you will send engineer coming to our factory to install and test the machines?
A3:Yes,Every set of machine we will send professional engineer to your factory and help installation and test the machines for you.
Q4:If you have CE,SGS,ISO certificate?
A4:Yes,except these,if you also need other certificates,we also can help to apply.
Q5:If we buy your machines, can you offer us wear-out spare pats?
A5:Yes,We provide our high quality machine 1 years' guarantee,and we will also offer you 1 years wear-out spare parts for free. Once your machines broken or doesn't work within 1 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tools. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
Q6:What is the voltage?
A6: 380V 50hz 3 phase or any other voltage according to client's requirement.
